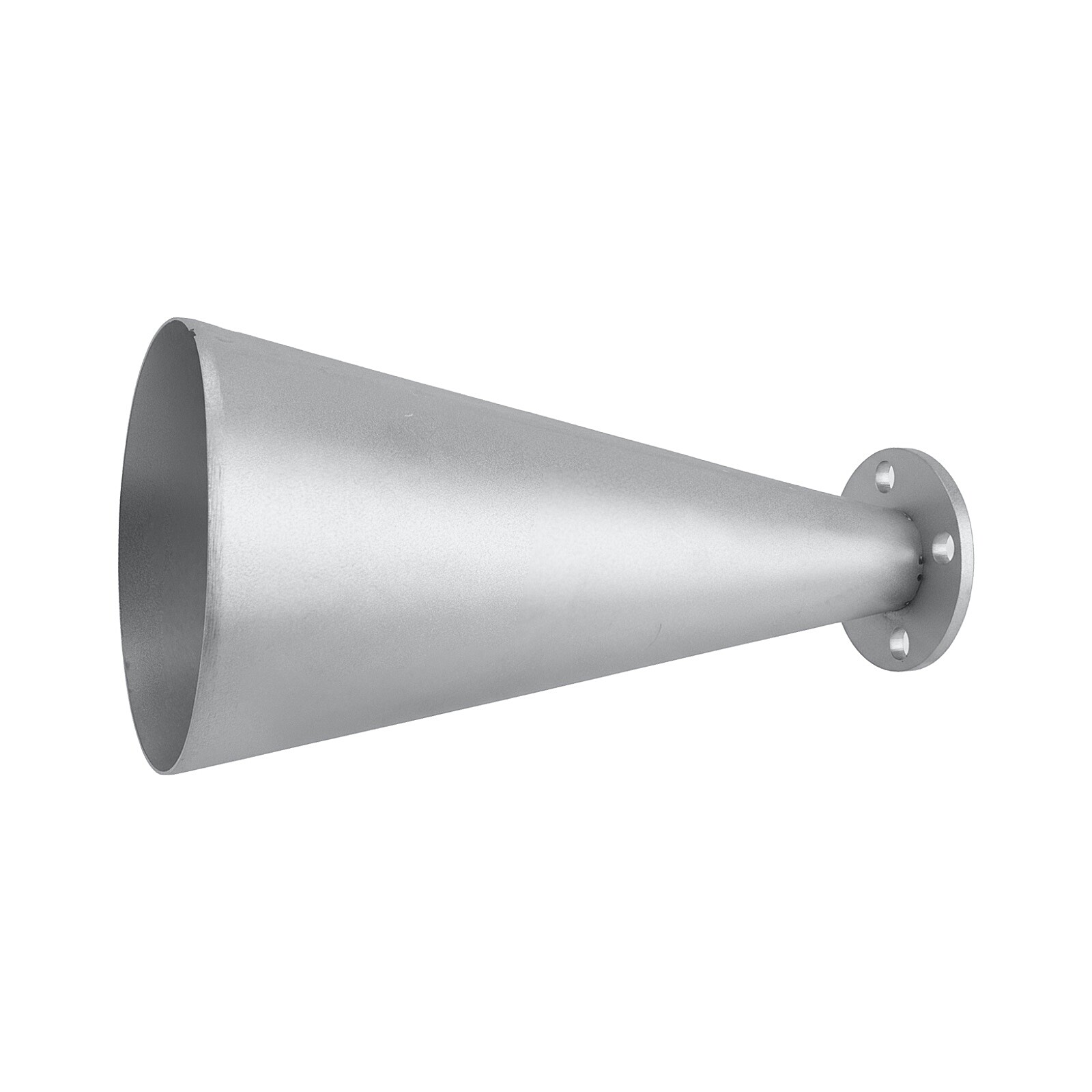

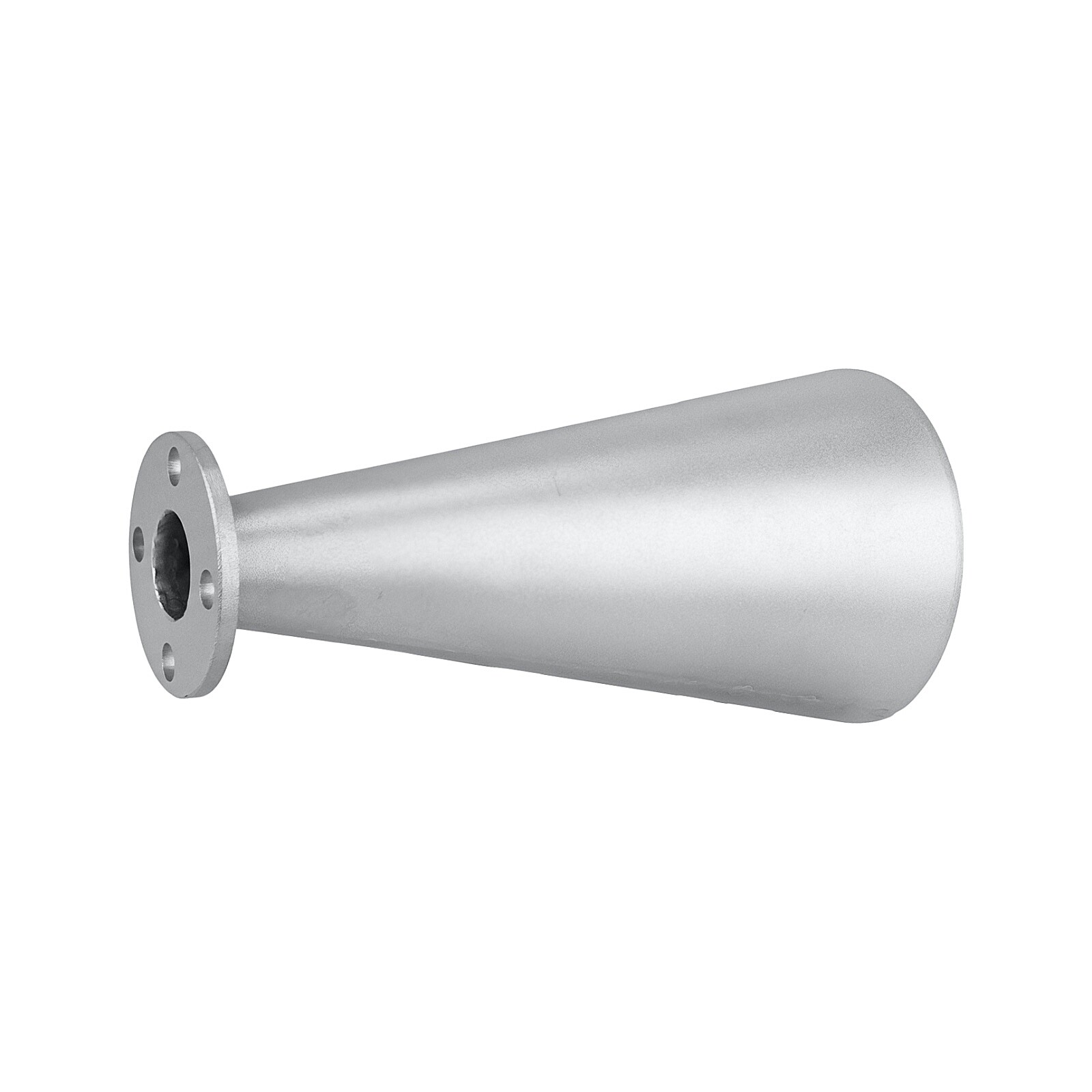

Resonance set cone for original exhaust Pionýr 05,20,21,23 - 130mm

Separate cone of the resonance kit designed for the original beveled exhaust for Pionýr motorcycles. This component serves to maximize the potential of the exhaust system, which is ideal especially in combination with modified cylinders. The main advantage is the preservation of the original appearance of the motorcycle, since the entire kit is hidden inside and no change is visible from the outside.

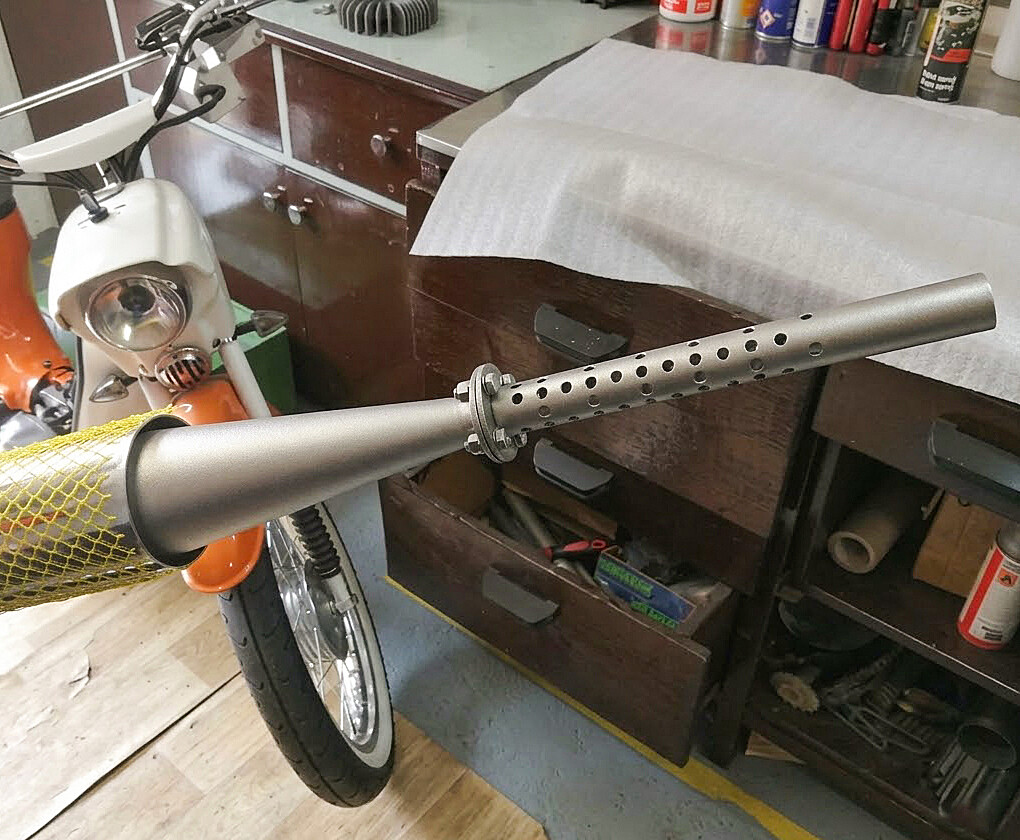

The cone with the exhaust pipe can be moved in the exhaust, which allows you to change the resonance length and tune the power as needed. It is secured using an end cap with an M6 screw, which fixes the exhaust pipe against movement. Designed for installation in an empty beveled exhaust pipe (not compatible with the "cigar" type). To assemble a complete functional set, it is necessary to purchase a holder, exhaust pipe, gasket, fasteners and damping cotton (for the version with a silencer).

Designed for motorcycles:

• Pioneer - 05, 20, 21, 23 (Mustang)

Parameters:

• Cone length: 130 mm
• Diameter for travel card: 16 mm
• Diameter to exhaust: 67 mm
• Material: stainless steel
• Material thickness: 0.8 mm
• Exhaust type: beveled (not for cigar)
