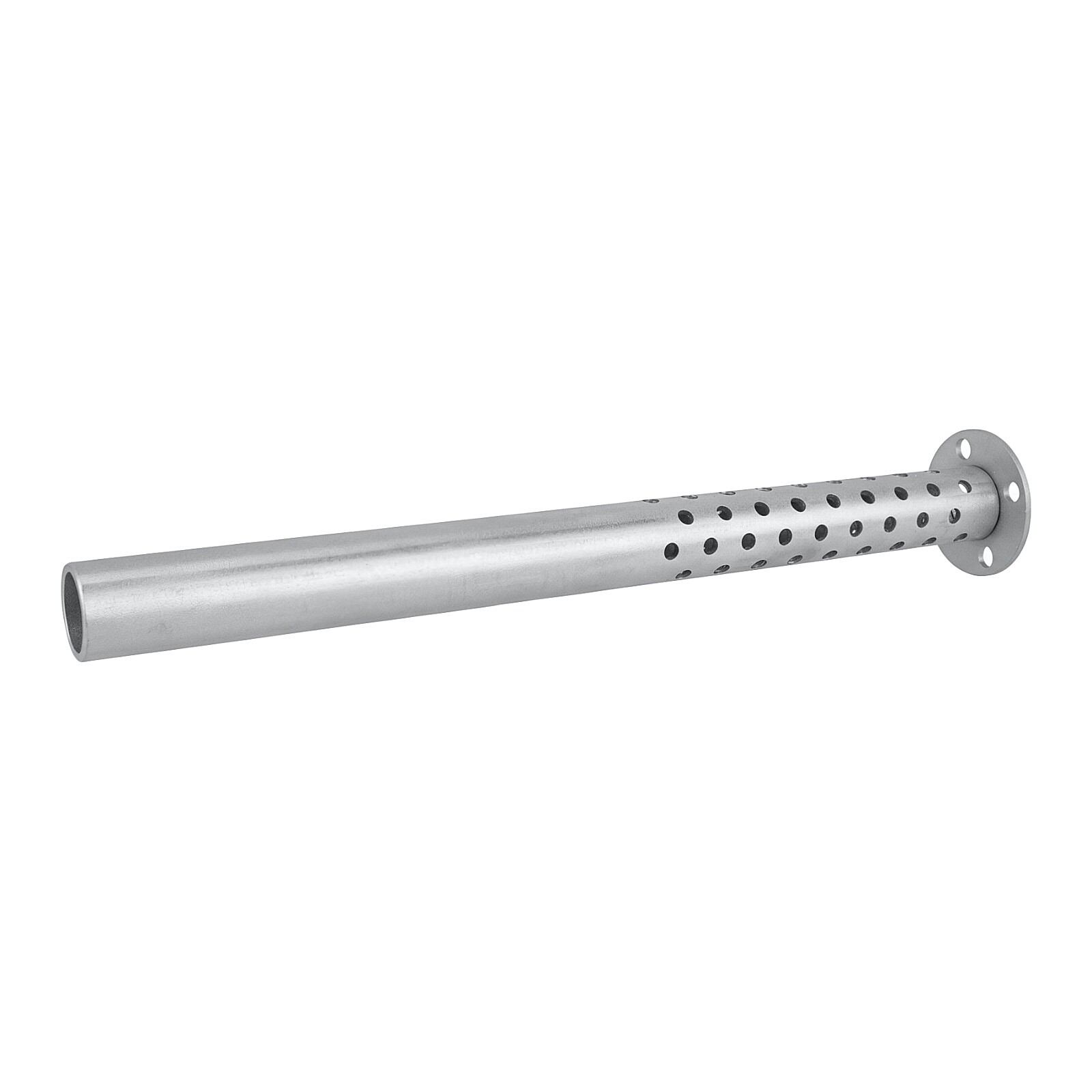

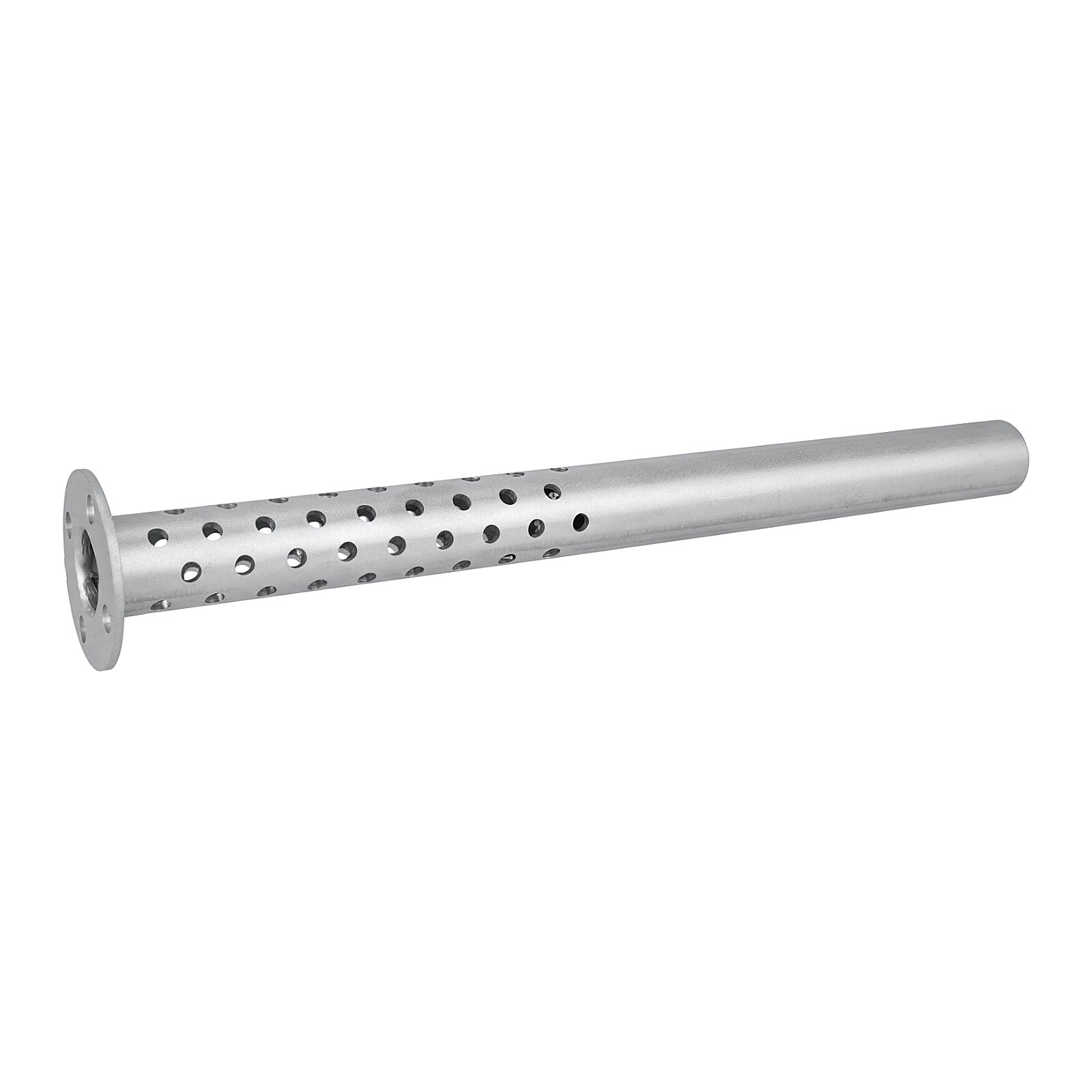

Resonance set travel bag Ø16x240mm Pionýr 05,20,21,23 - perforated

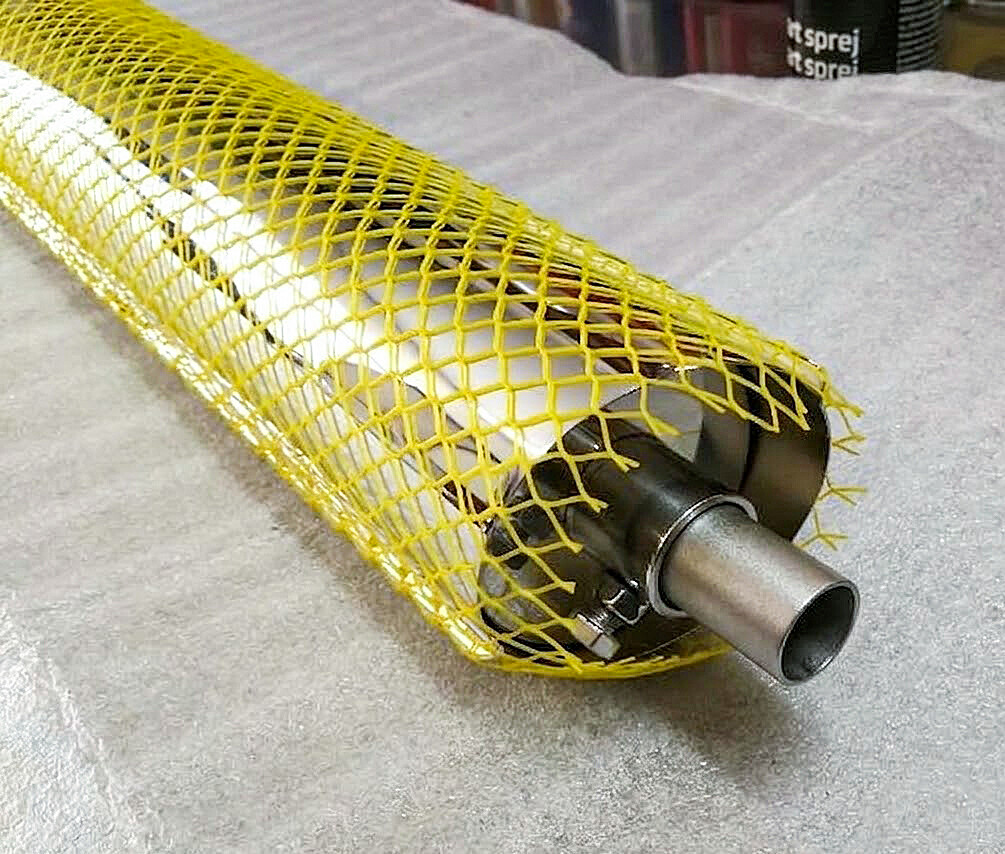

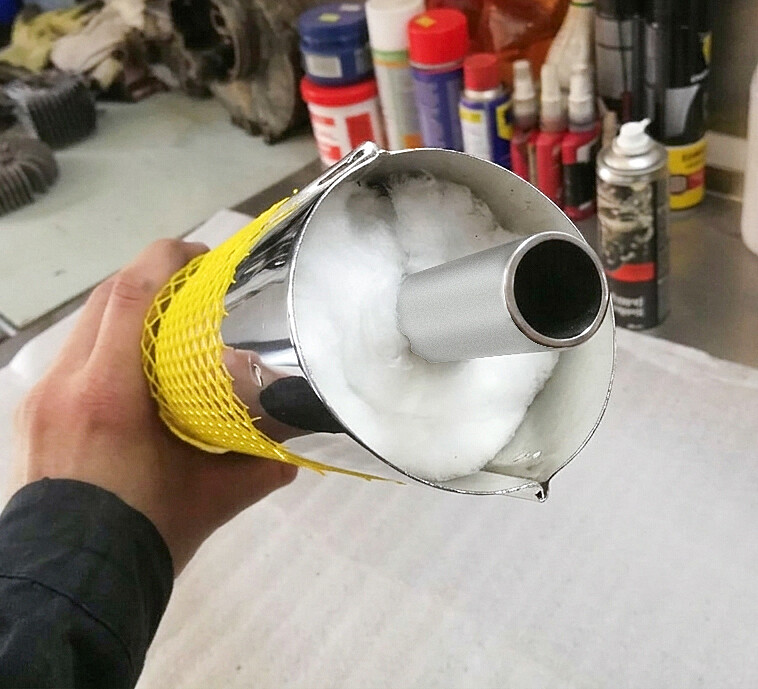

Resonance kit exhaust in perforated design intended for installation in the original beveled exhaust of Pionýr motorcycles. This component allows you to maximize the potential of the exhaust system while maintaining the original appearance of the machine. The perforated part serves to effectively dampen exhaust noise, and for proper function, damping cotton is installed around the perforated part.

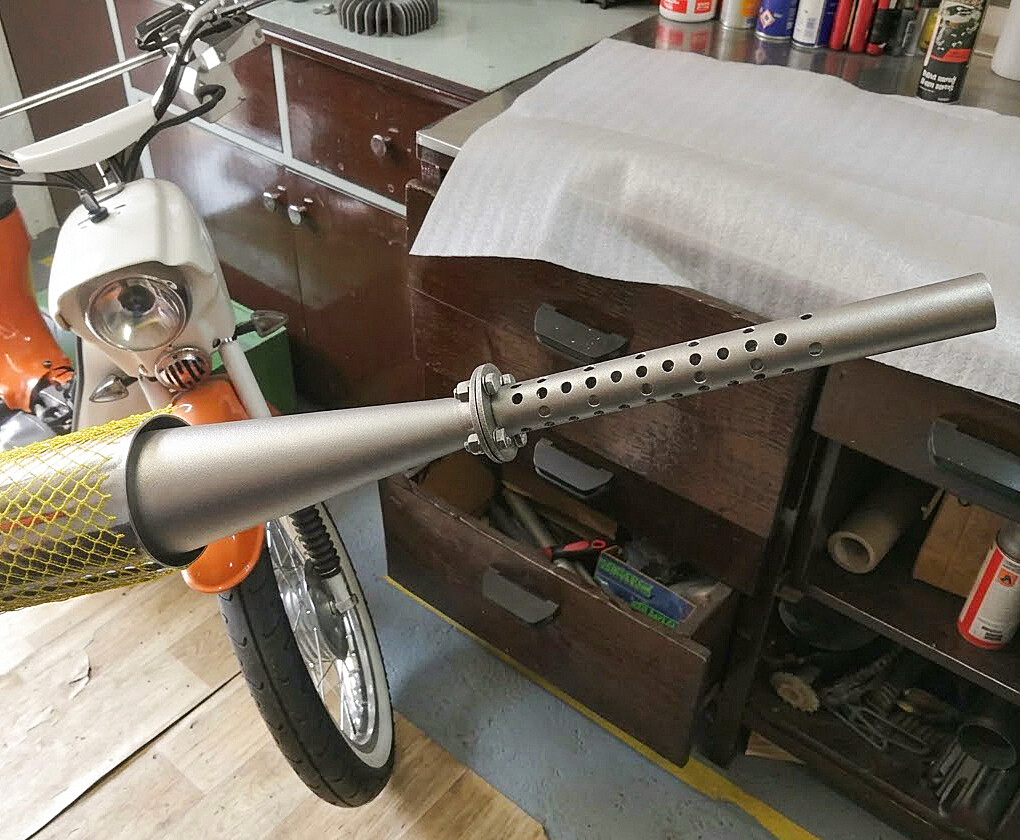

The stainless steel construction with TIG welding ensures high durability and the visible part of the tube is polished. The exhaust pipe has a flange for connection to the resonance cone using M5 screws. The total length of 240 mm is intended as a spare and tunable - the tube can be cut to the exact size as needed. Designed for installation in an empty beveled exhaust (not compatible with the "cigar" type).

Designed for motorcycles:

• Pioneer - 05, 20, 21, 23 (Mustang)

Parameters:

• Design: perforated (damping)
• Inner diameter: 16 mm
• Outer diameter: 20 mm
• Total length: 240 mm (tunable)
• Punching length: 120 mm
• Number of holes: 70x Ø 4 mm (drilled)
• Material: stainless steel (polished)
• Welding method: TIG

To assemble a complete resonance set, it is possible to purchase a cone, end cap, gasket, damping wadding and fasteners separately.
