Simson 70 cc cylinder with Nikasil coating - MZA - set

Simson 70 cc cylinder for S51, S70, SR80 models with Nikasil coating from the manufacturer MZA in a complete set. The cylinder does not have a cast iron liner, it is replaced by a nickel-silicon-carbide Nikasil coating applied directly to the cylinder, which is used in modern racing engines. It ensures better sliding properties, better heat dissipation, high mileage, lower weight and short running-in time. The channel transitions are modified to improve performance. Before installing the piston, check the piston ring gap (the prescribed gap is approximately 0.2–0.3 mm).

Designed for motorcycles:

• Simson S51 - all types
• Simson S70 - all types
• Simson SR80 - scooter

Parameters:

• Volume: 70 cc
• Surface treatment: Nikasil
• Cylinder material: all-aluminum
• Cylinder bore: 45.00 mm
• Piston diameter: 44.96 mm
• Piston kit type: ML-MEGU
• Distributor: MZA Meyer-Zweiradtechnik GmbH

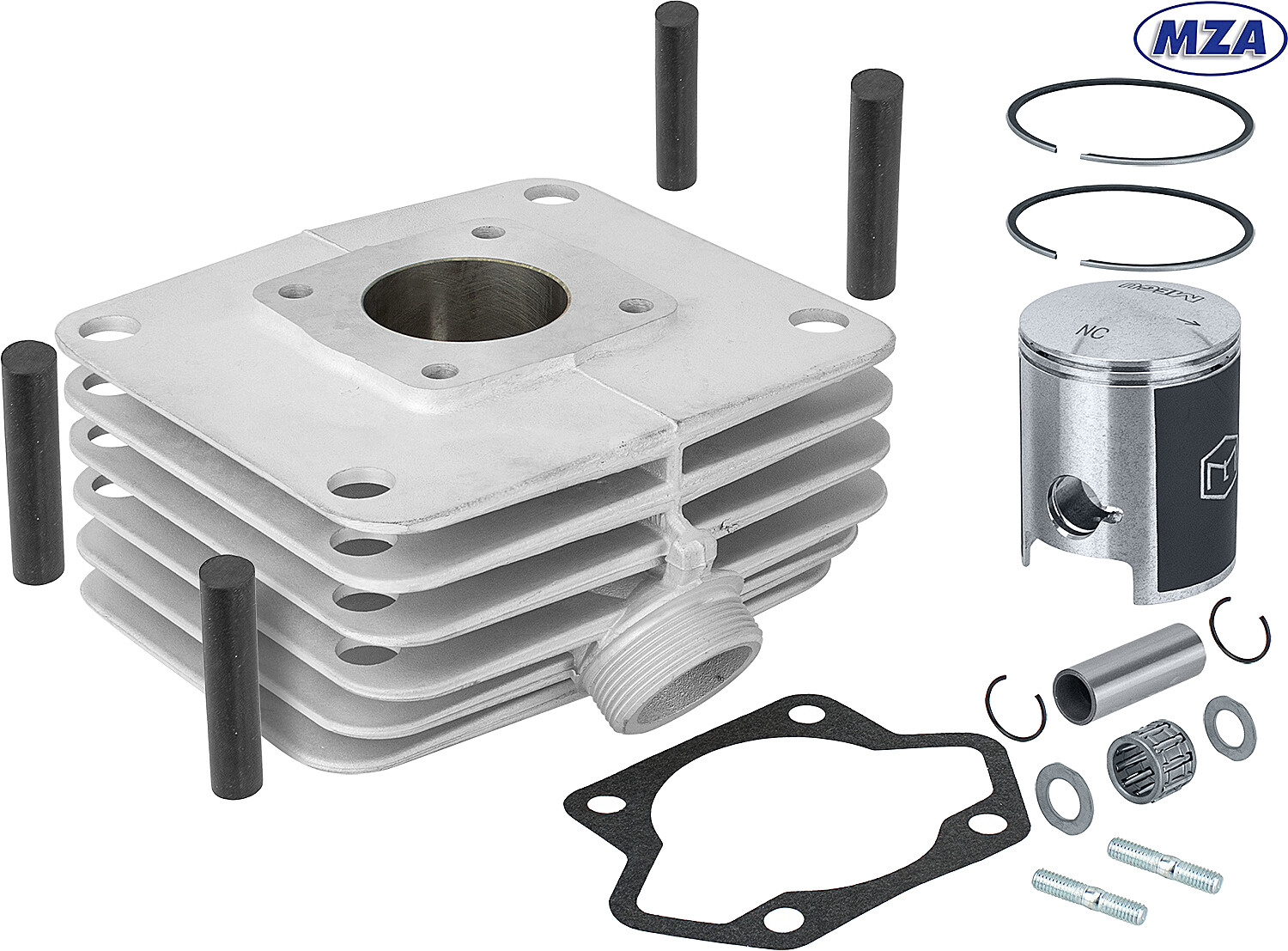

Package contents:

• 1x all-aluminum cylinder with Nikasil coating
• 1x ML-MEGU piston set
• 1x needle cage
• 4x cylinder damping rubber
• 2x needle cage insert
• 2x cylinder bolt
• 1x cylinder seal
