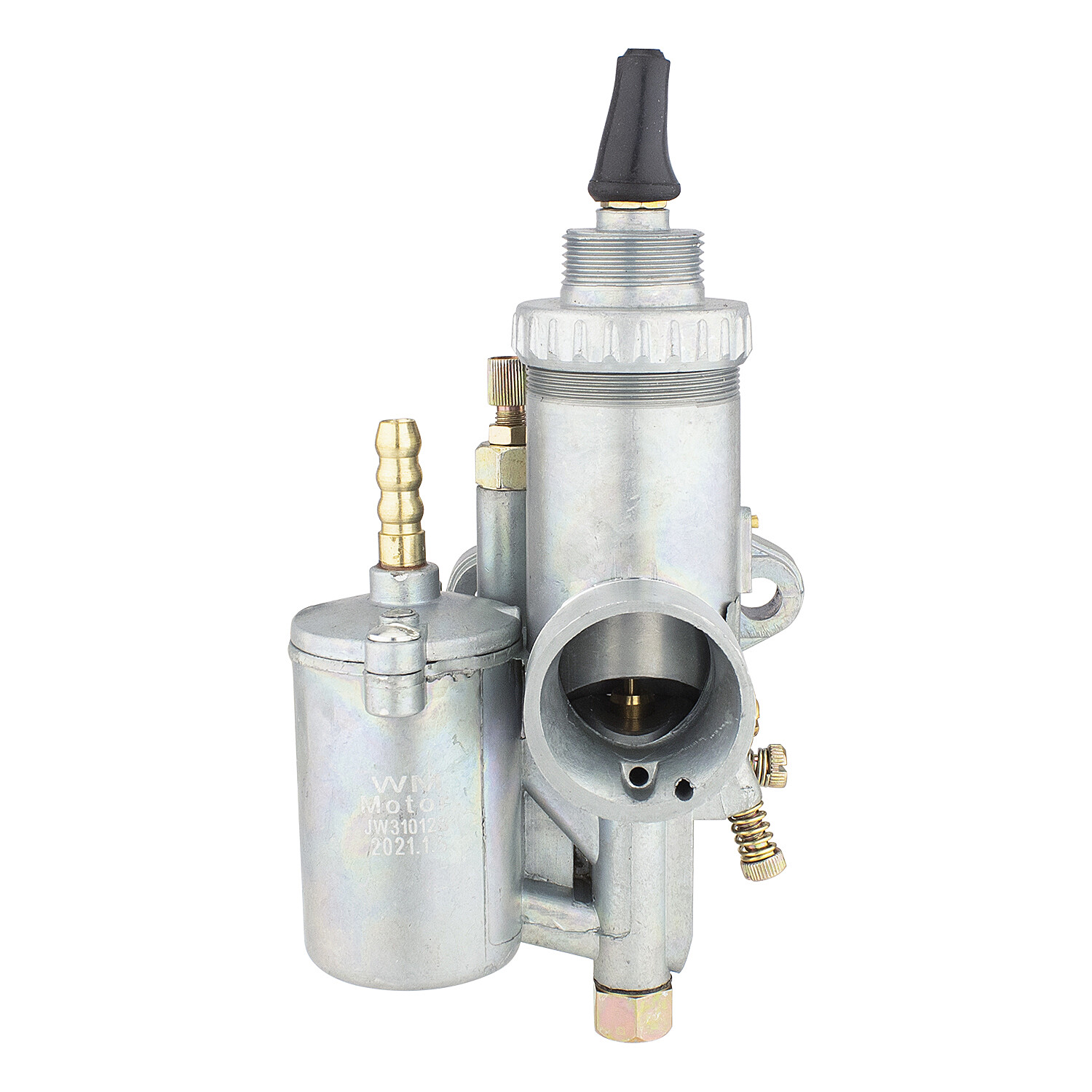

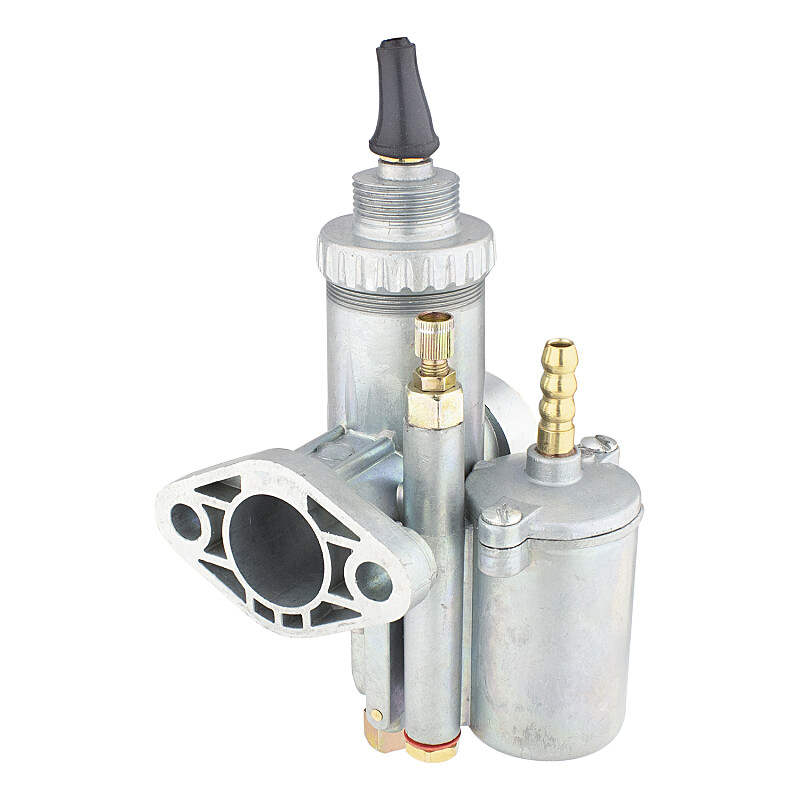

Carburetor Jawa/ČZ D26 with choke - TW

This carburetor can be used for the Jawa/ČZ 175,250,350 Kyvačka, Panelka, Velorex motorcycle.

• Diffuser diameter 26mm.
• Idle jet - 55.
• Main nozzle - 120 M4 thread
• The carburetor is complete (has a slide, needle, fuse, float, mixture screw, idle screw, slide spring, screw spring)

For use in a 125cc engine, we recommend a size 45 idle jet and a size 85 main jet M4 .

For use in a 175cc engine, we recommend a size 50 idle jet and a size M4 main jet: 88 - 92 .

For use in a 250cc engine, we recommend a size 50 idle jet and a M4 main jet : 92 - 95 .

For use in a 350cc engine, we recommend a size 55 idle jet and a size M4 main jet : 98 - 100 .

Note (the size of the main nozzle still varies depending on the air filter used.)
