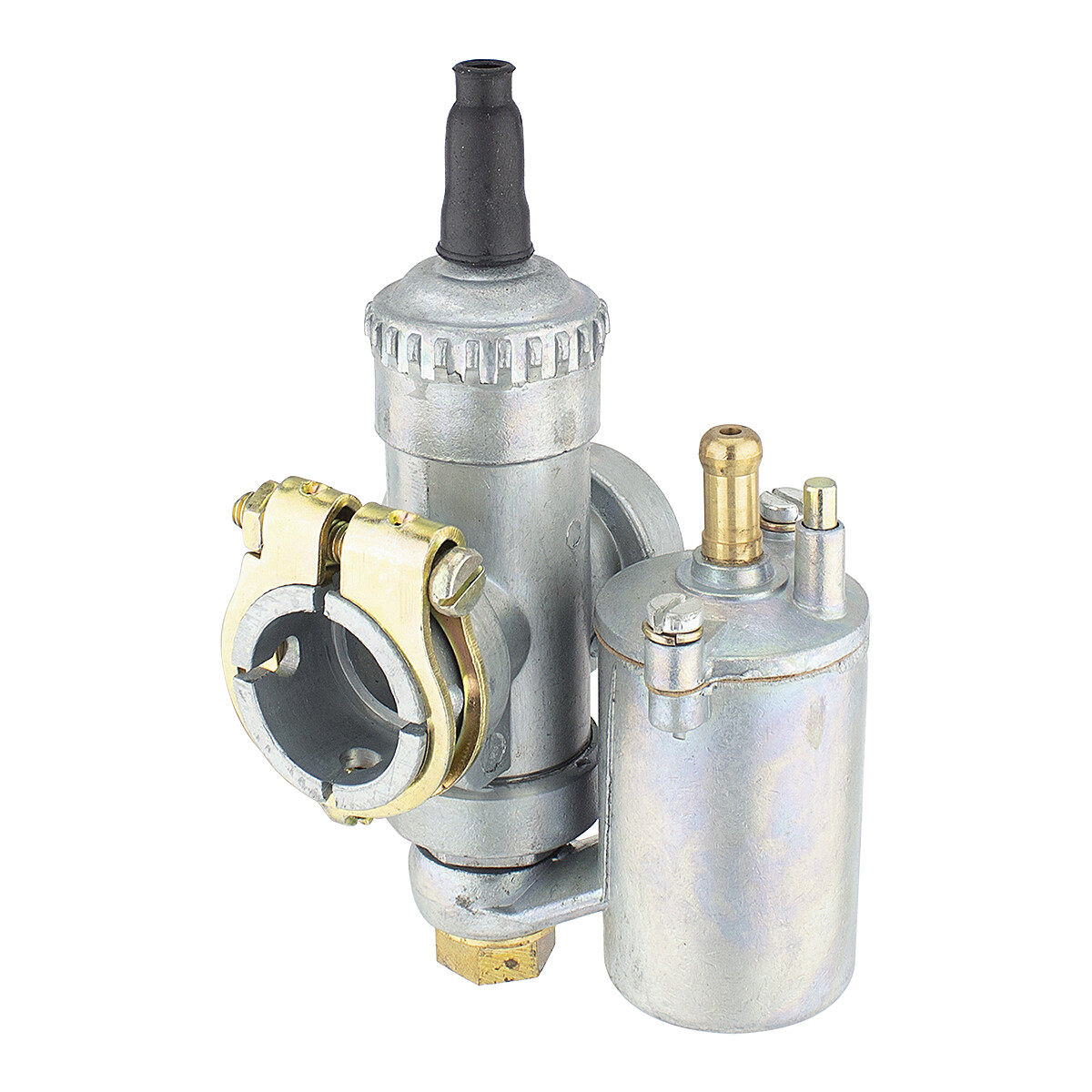

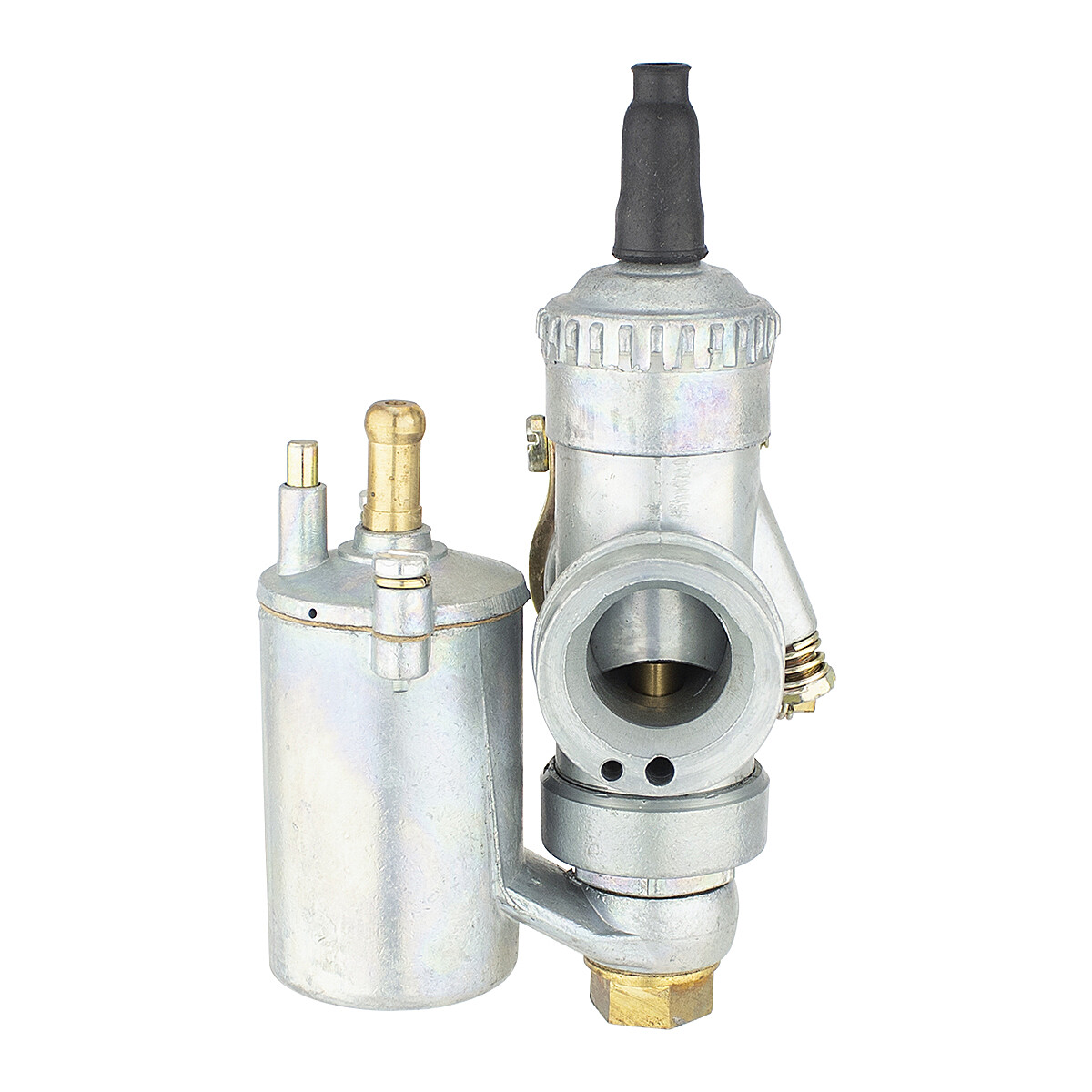

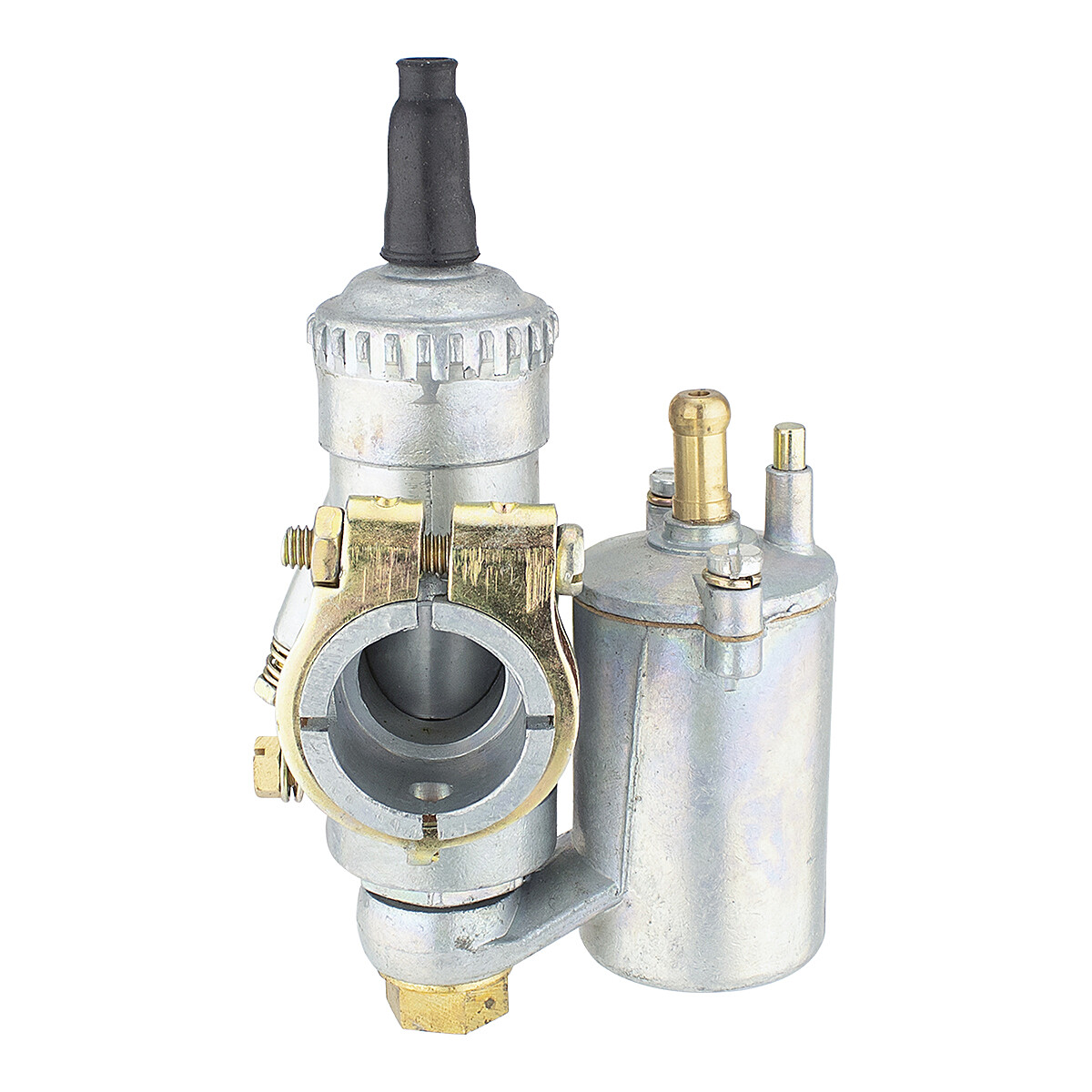

Carburetor replica ČZ 125/150 C

The carburetor can be used on ČZ 125, 150 C engines. During assembly, the carburetor cover must be filed down a little. A choke valve cannot be installed there, only if you drill a hole.

We have tested this carburetor on motorcycles, after assembly we didn't even have to install the choke flap, we just left the control sticking out through the grommet to make it look good, the engine starts without a choke even when cold and runs nicely on gas.

The carburetor has a throat opening of 25.5 mm. The intake has an outer diameter of 34.2 mm. The total length is 69 mm. The diffuser diameter is 20 mm.
