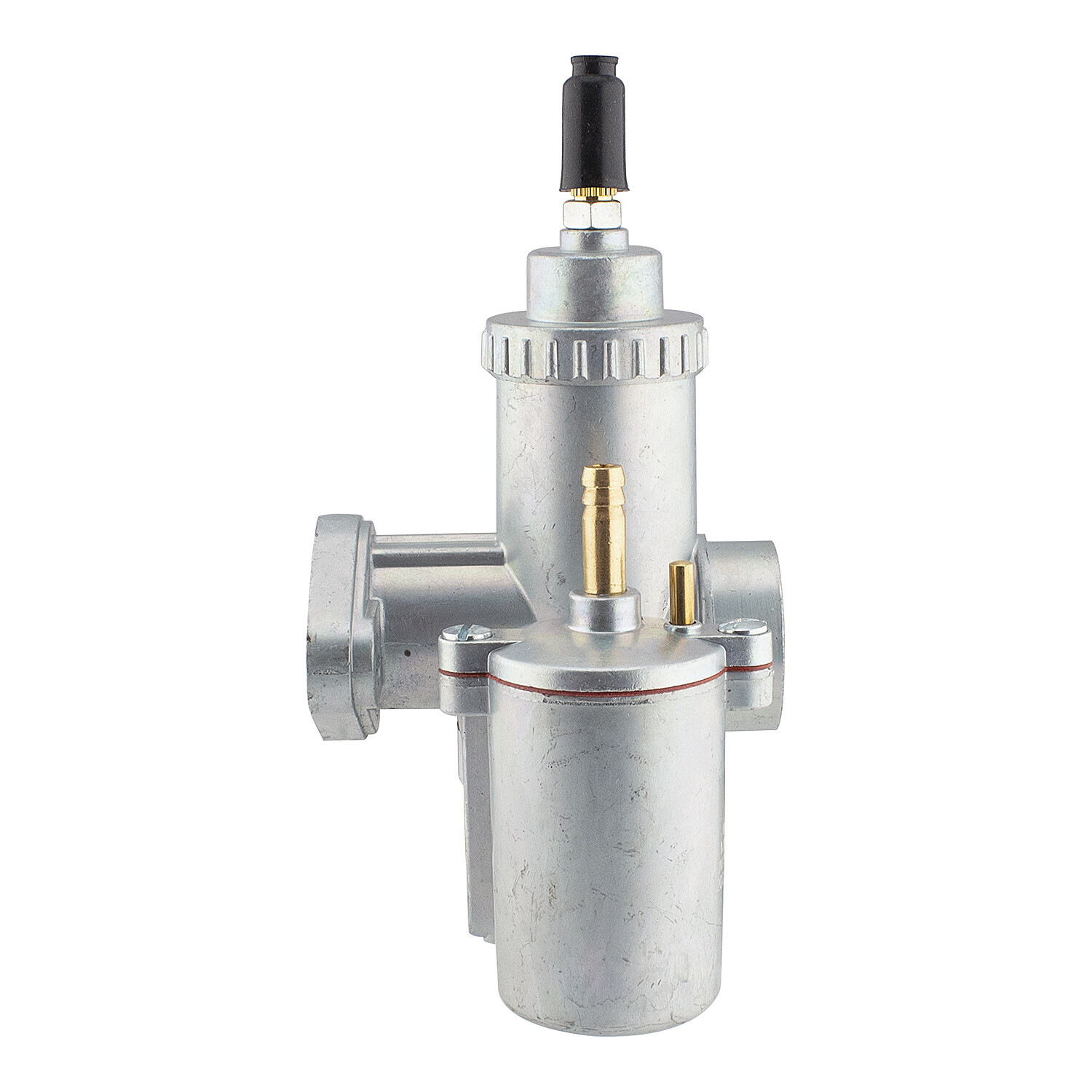

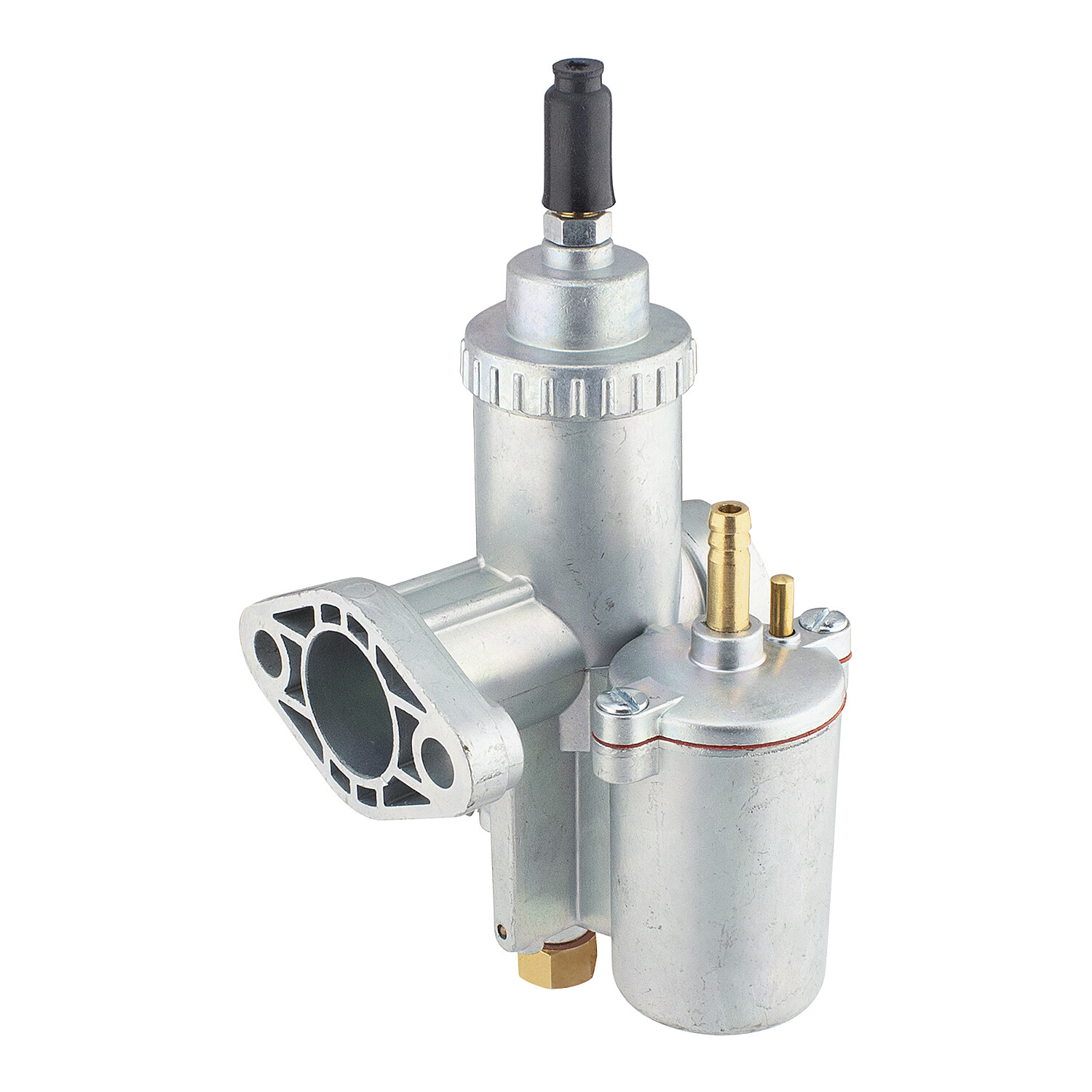

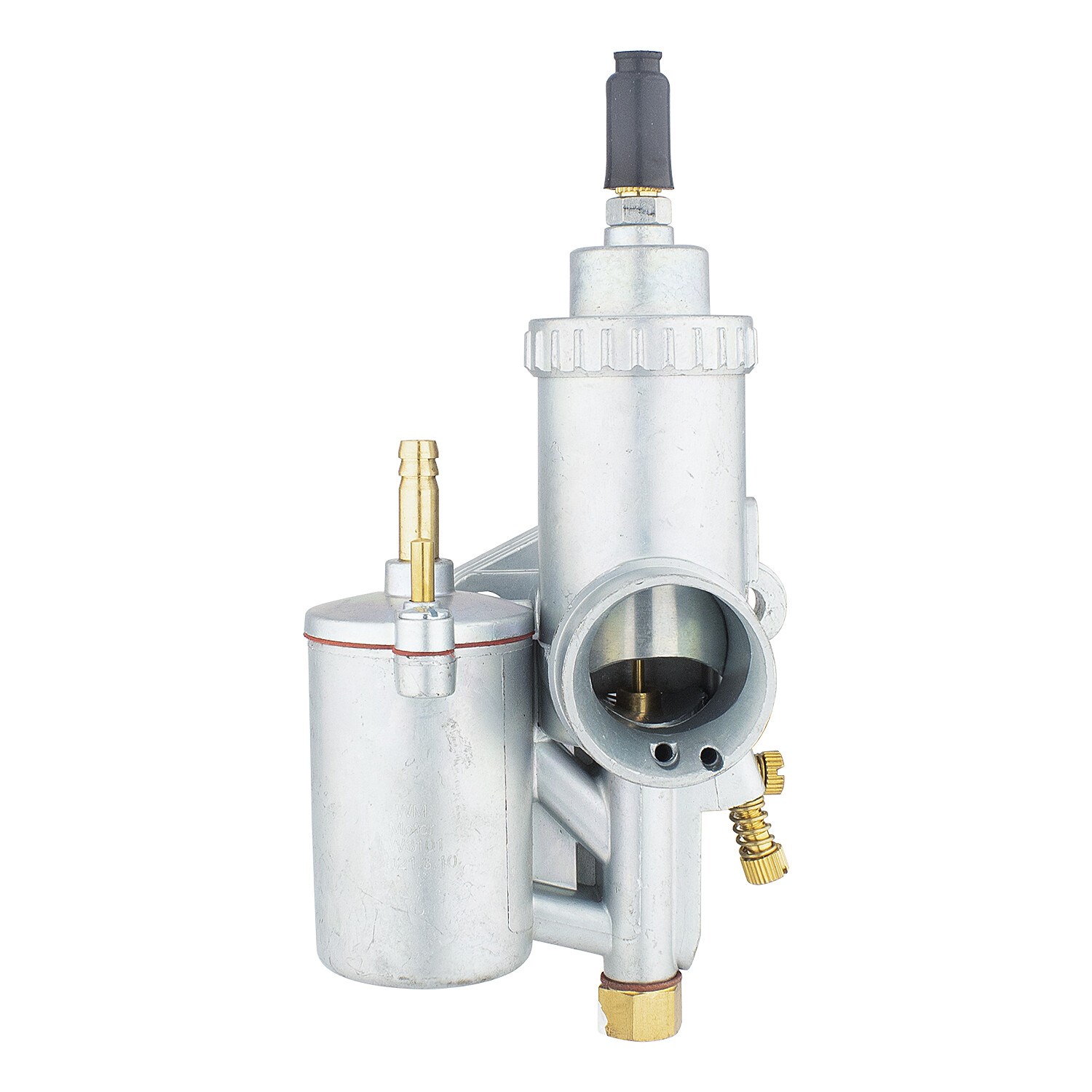

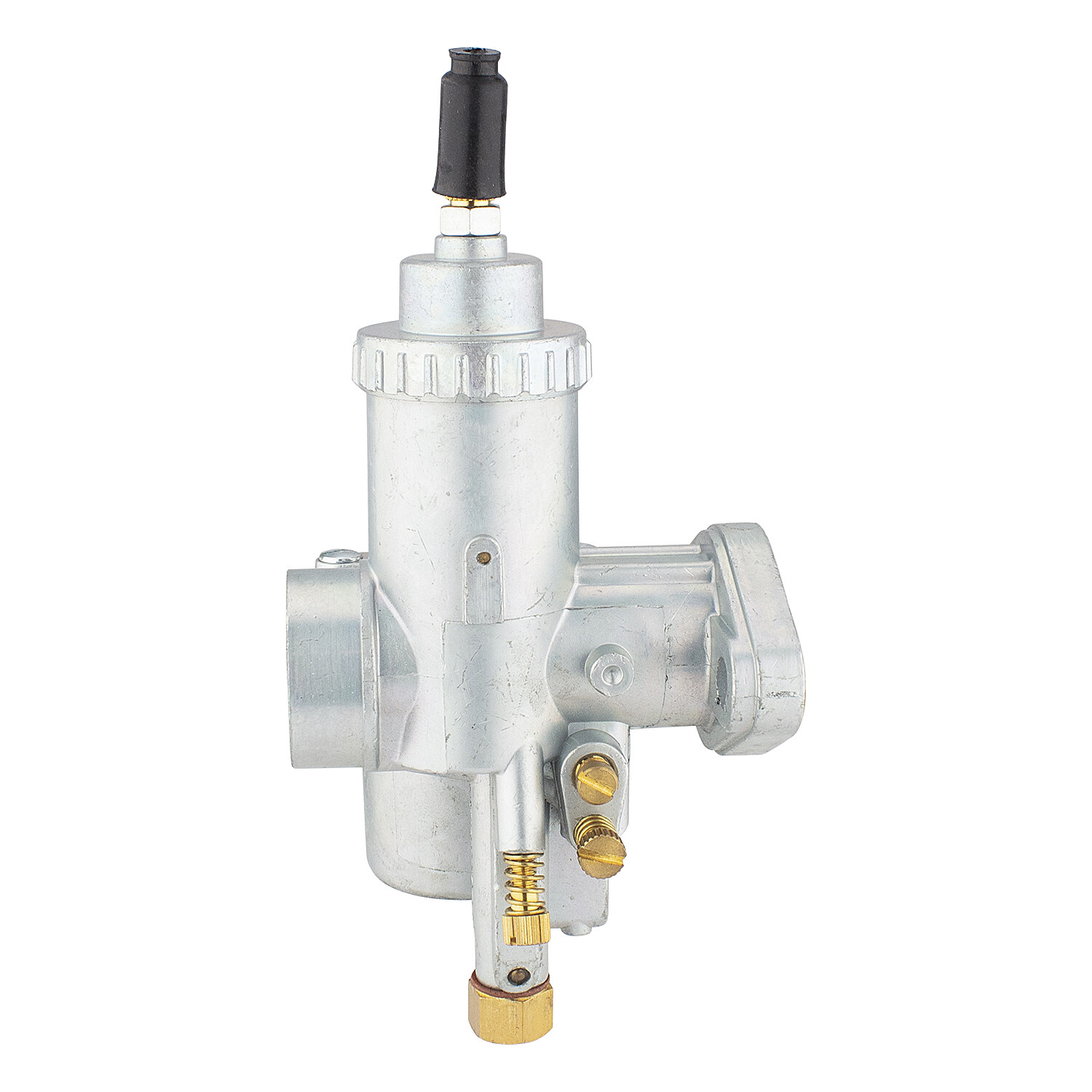

Carburettor Jawa / ČZ D26 - TW

This carburetor can be used for motorcycles ČZ 471, 472, 477, 487 and 501, 502 scooter, Jawa 350 / 632,634.

• Diffuser diameter 26mm.
• Idling nozzle - 50.
• Main nozzle - 115 M4 thread
• the carburetor is complete (it has slide, needle, fuse, float, mixture screw, idle screw, slide spring, screw spring)

For use in a 125cc engine, we recommend an idle nozzle size 45 and a main nozzle M4: 85 .

For use in a 175cc engine, we recommend an idle nozzle size 50 and a main nozzle M4: 88 - 92 .

For use in a 250cc engine, we recommend an idle nozzle size 50 and a main nozzle M4: 92 - 95 .

For use in a 350cc engine, we recommend an idle nozzle size 55 and a main nozzle M4: 98 - 100 .

Note (the size of the main nozzle also varies according to the use of the air filter.)
