Connecting rod complete Jawa 250 Panelka with cage - CKR

Connecting rod for motorcycle JAWA 250 type 559 Panelka.

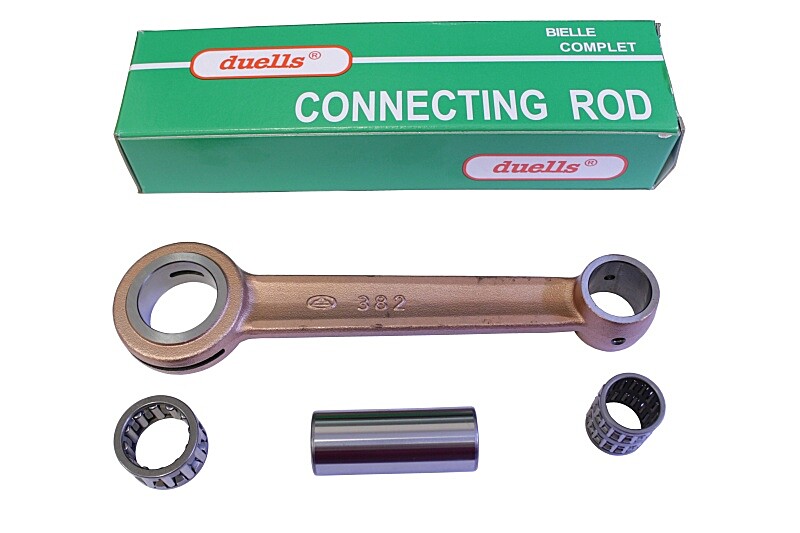

The connecting rod set includes: connecting rod, lower needle roller cage, lower connecting rod pin and piston pin needle roller cage.

Piston pin D18 x 56 is not included in the package, but can be purchased separately.

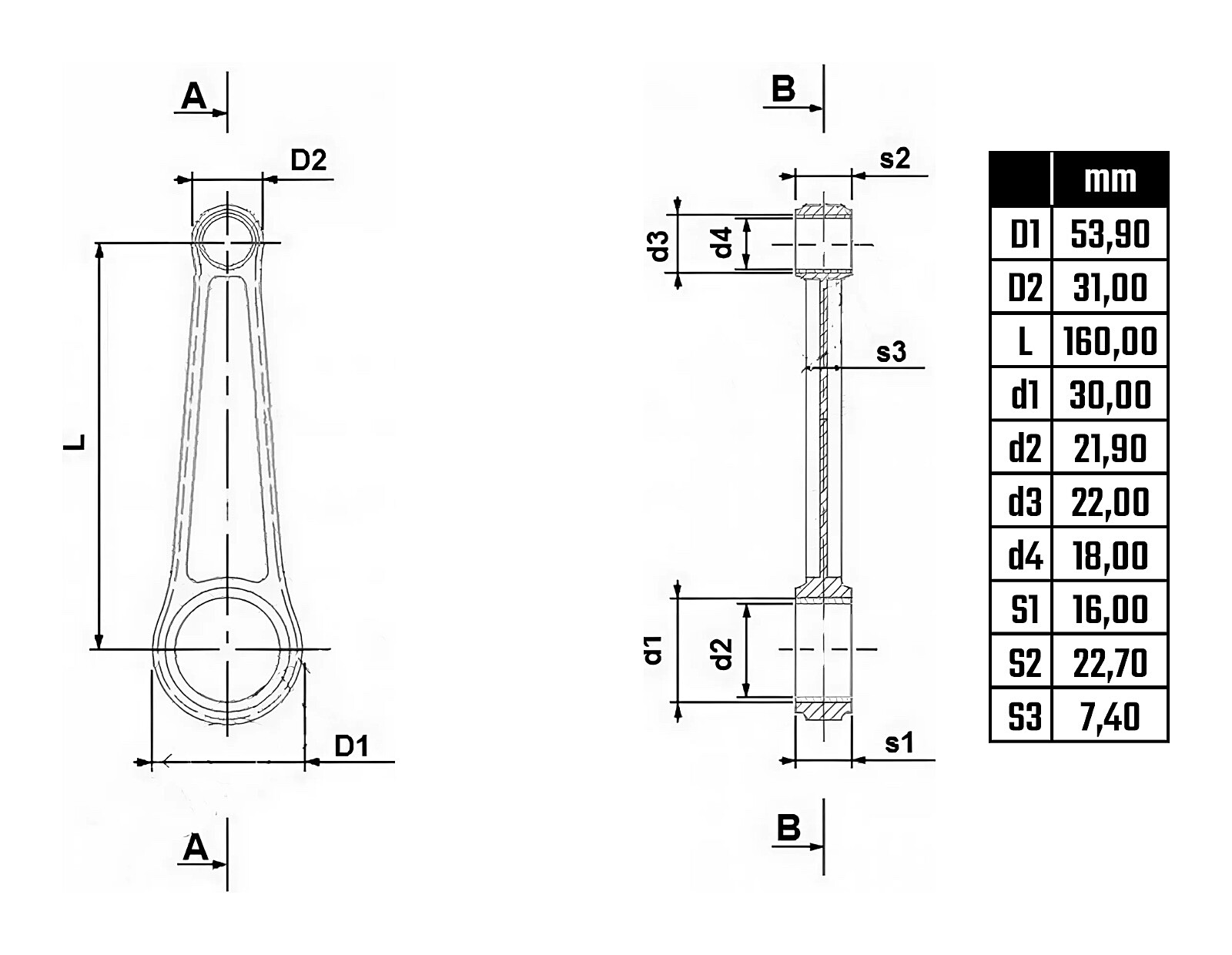

Dimensions: connecting rod length - (center of eye - center of eye) - approx. 15.8 cm, total connecting rod length - approx. 19.8 cm, lower eye diameter - approx. 30 mm, lower pin diameter - approx. 22 mm, for press-on 21.90 mm, lower eye width 16 mm, upper eye diameter approx. 22 mm, piston pin diameter 18 mm (not a component), upper eye width 23 mm.

The country of manufacture is TAIWAN, they are manufactured there by the CKR company, which has been producing and supplying connecting rods not only for our motorcycles for many years, but also for world brands.

We have been assembling connecting rods in our service for a long time and have not had any problems so far. If you are interested, we can press the connecting rod onto your crankshaft and center the crankshaft. We usually send crankshafts by mail.
