Connecting rod complete Jawa 250 Panelka with cage - TW

Connecting rods for motorcycle JAWA 250 type 559 Panelka derived types.

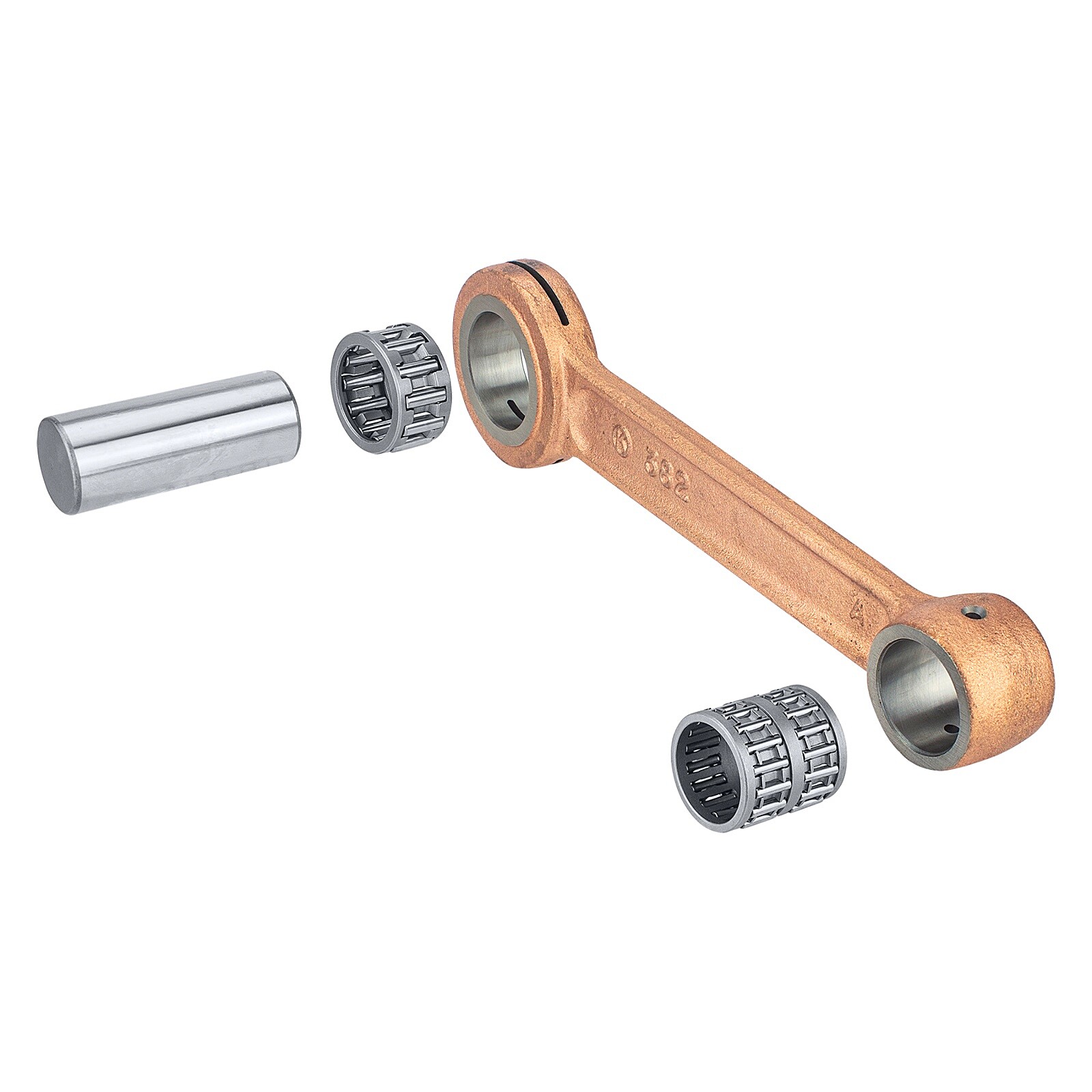

The connecting rod set includes: connecting rod, lower needle roller cage, lower connecting rod pin and piston pin needle roller cage.

Piston pin D18 x 56 is not included in the package, but can be purchased separately.

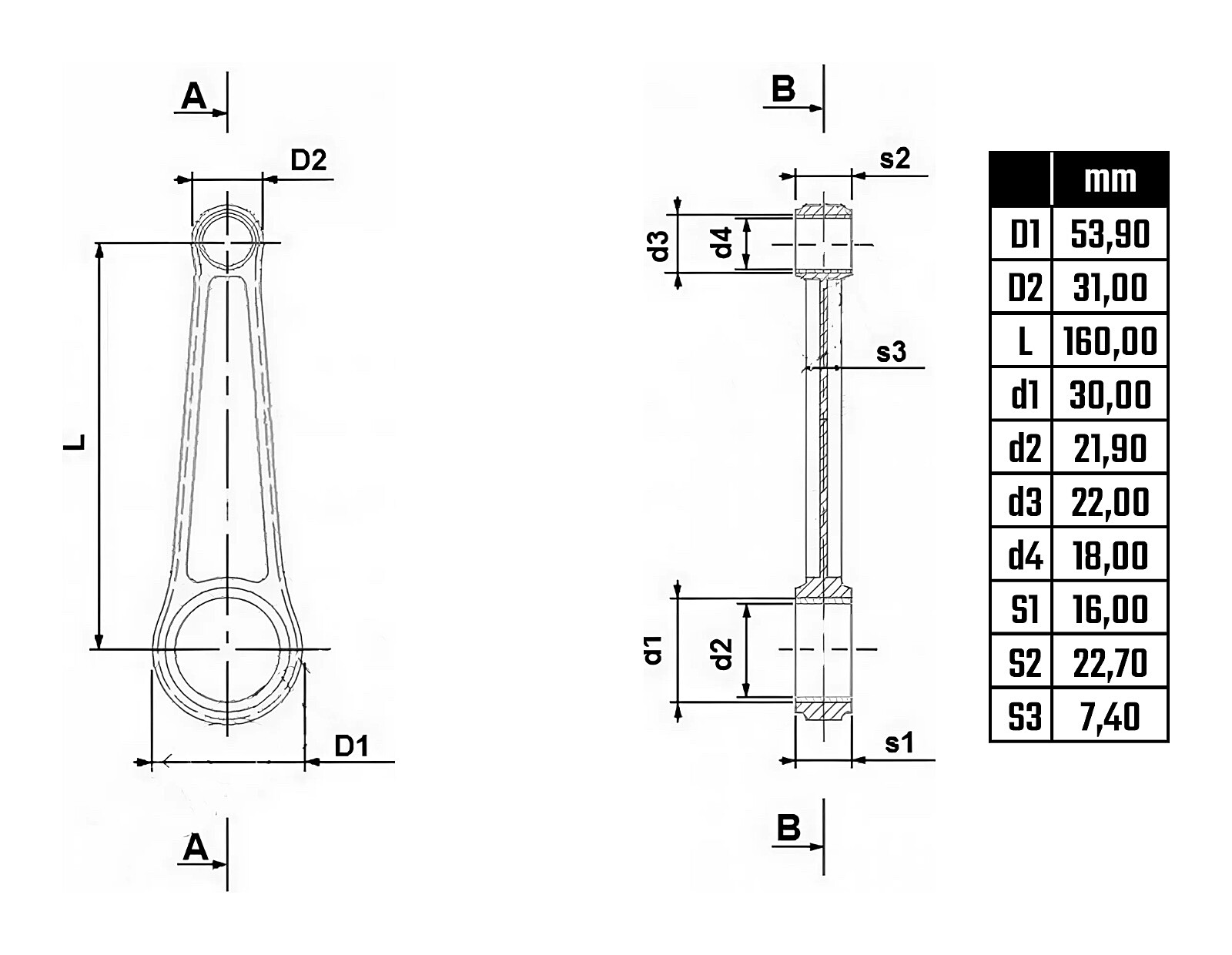

Dimensions:

connecting rod length - (center of eye - center of eye) - approx. 15.8cm

total length of connecting rod - approx. 19.8cm

diameter of the lower eye - approx. 30mm,

diameter of the lower pin - approx. 22mm, for press-on 21.90mm,

width of the lower eye 16mm diameter of the upper eye approx. 22mm,

Piston pin diameter 18mm (not included), upper eye width 23mm.

The country of manufacture is TAIWAN.
