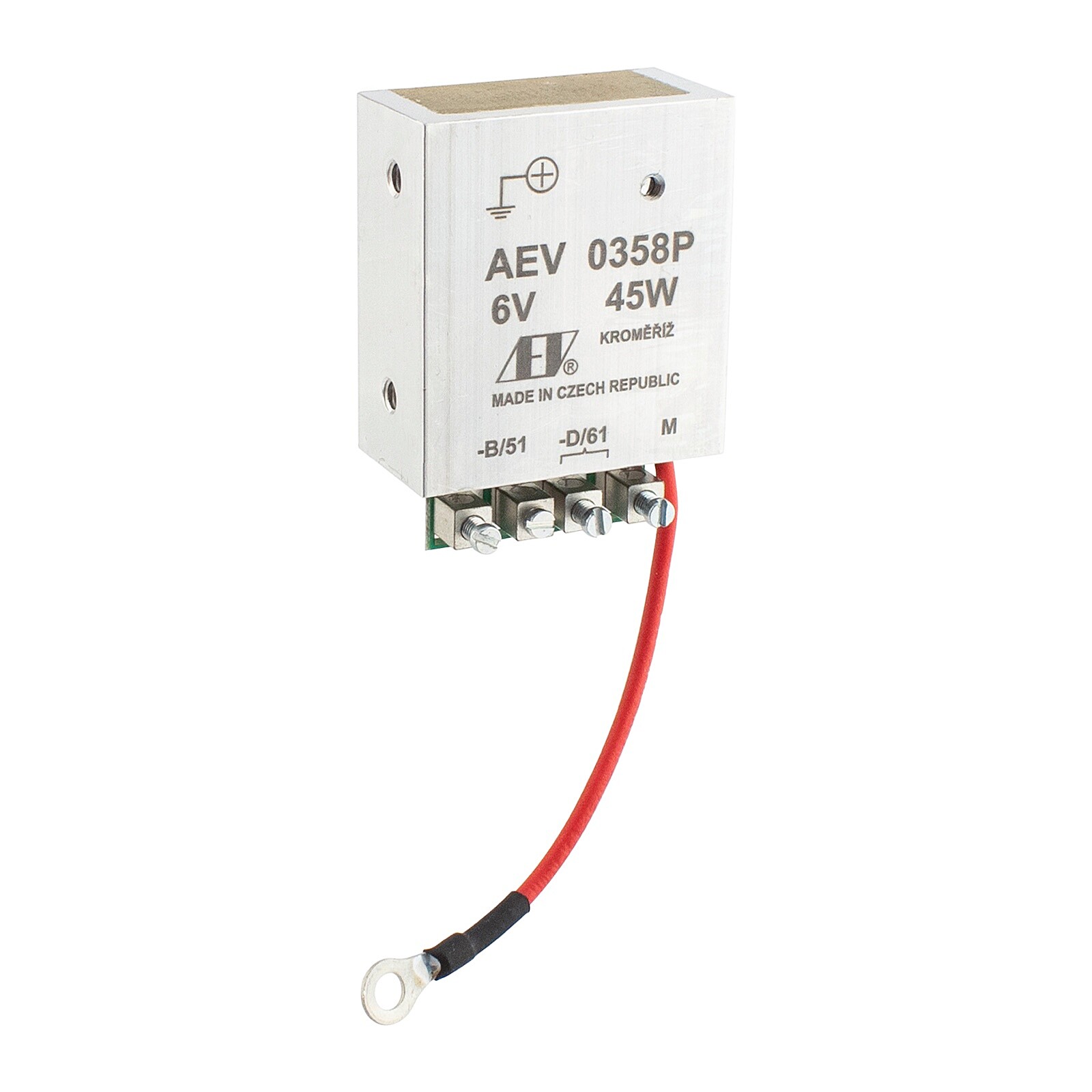

Dynamo regulator 6V 45W AEV with grounding ( + )

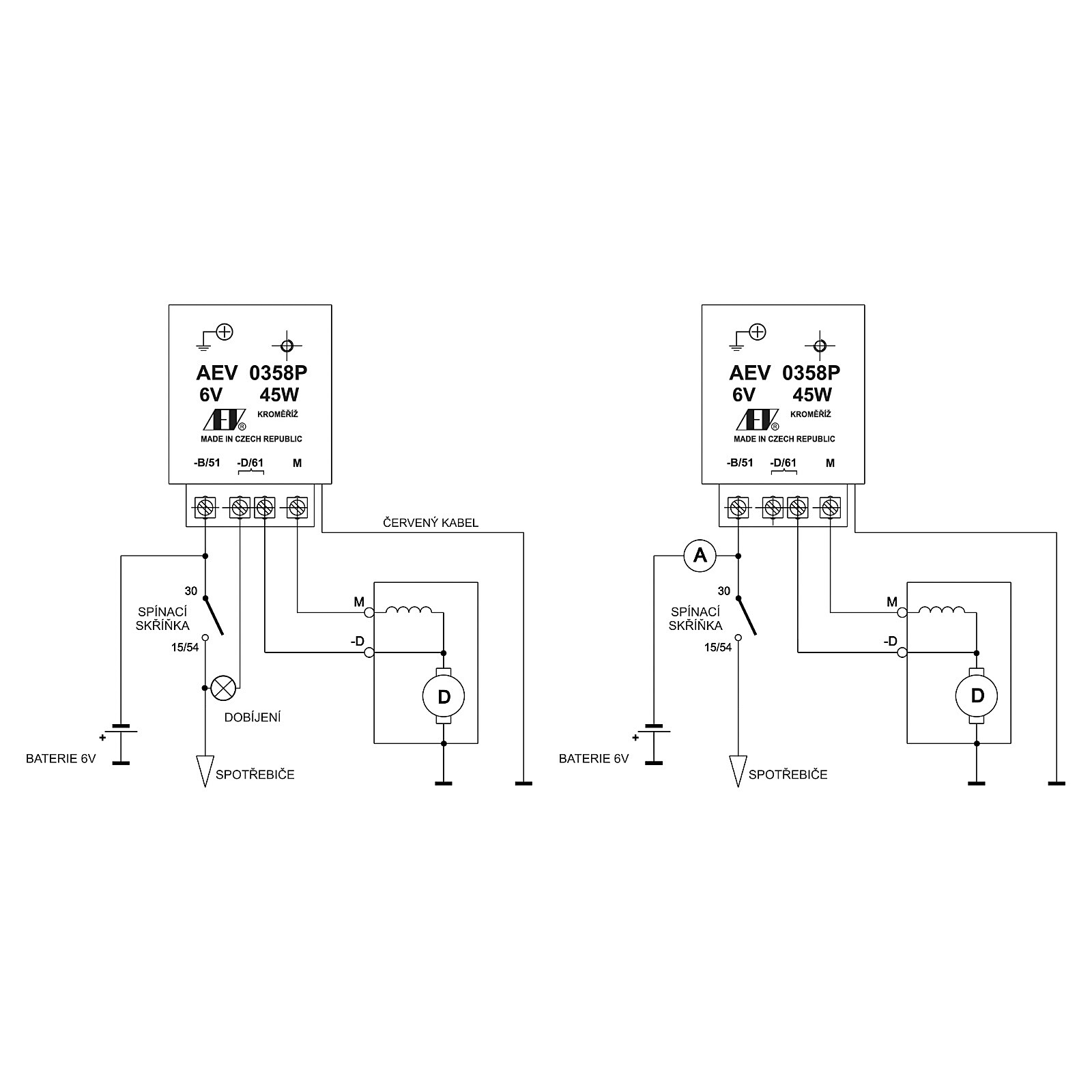

Dynamo regulator for regulation of derivation dynamos with minus regulation. The regulator is switched to the excitation winding of the dynamo against the frame and is intended for a network with a nominal voltage of 6V, which is operated with the plus pole of the accumulator on the frame.

The regulator ensures regulation of the output voltage of the dynamo and at the same time protects the dynamo against current overload. Thanks to the function of the reverse switch, the accumulator is disconnected from the dynamo in the event of reverse current from the accumulator to the dynamo, for example when the engine is stationary or in the event of a malfunction of the dynamo.

Technical parameters:

• Nominal mains voltage: 6V
• Regulation type: negative
• Nominal dynamo power: 45W
• Maximum value of excitation current: 4A
• Working temperature: -20°C / 90°C
• Minimum field winding resistance: ≥2Ω
• Earthed battery pole: plus
• Regulated dynamo voltage: 7.3±0.1V
• Current limit: 7.0 A ±5%
• Quiescent current:
