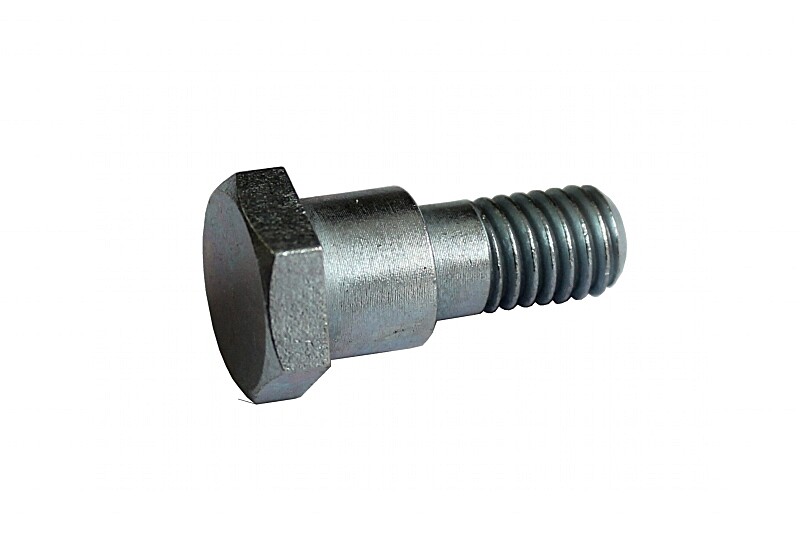

Pioneer stand screw type 2

Screw type No. 2 is intended for pioneers, where the main stand spring is guided through the center under the engine. And the hole in the stand is 8mm and in the footrest cross 11mm, therefore the screw has a shoulder. Screw dimensions: Total length - 26mm Length of the threaded part - 9mm Length of the part for the stand - 4mm and diameter is 7.8mm Length of the part for the cross is 7mm, diameter 10.9mm Thread M8 Czech production, according to the original. If you have a hole in the stand of 11mm, you must use Engine screw type No. 1

Designed for motorcycles:

• Pioneer - 05, 20, 21
