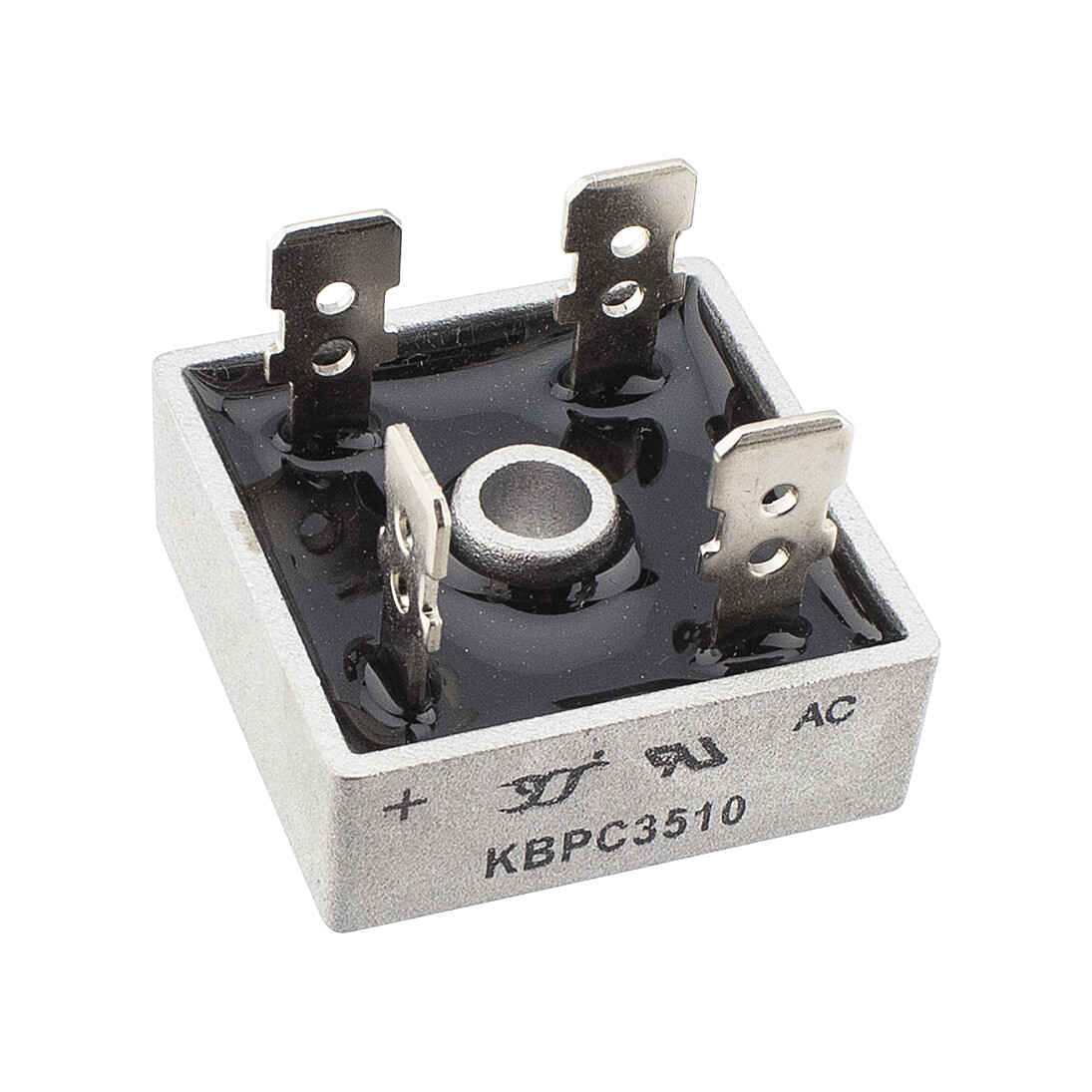

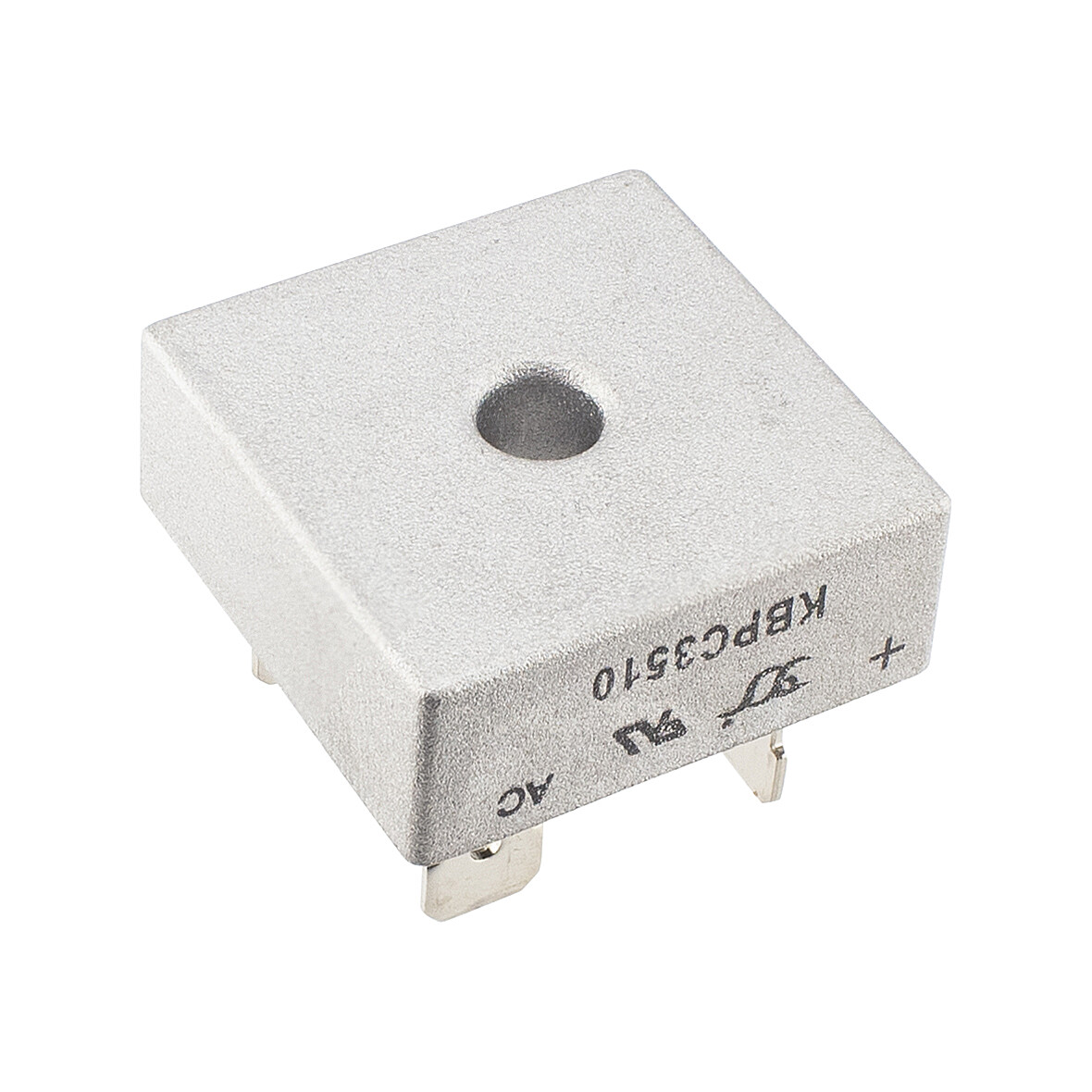

Simson rectifier bridge
1.88 € incl. VAT
1.58 € excluding VAT
1.58 € excluding VAT
Availability
In stock
In stock
Product code: SIM502121
Weight: 15 g
Manufacturer: EU
Content
It is used to rectify the alternating voltage on the direct current.
Here are the specs:
| Average peak forward current | 25A |
| Bridge type | One phase |
| Peak closing voltage repeatedly | 1000V |
| Mounting type | Through hole |
| Type of packaging | KBPC |
| Number of pins | 4 |
| Diode technology | Silicone transition |
| Diode type | Silicone transition |
| Configuration | Simple |
| Peak throughput inrush current at a single peak | 400A |
| Maximum working temperature | 150 °C |
| Minimum operating temperature | -55°C |
| Peak Forward Voltage | 1.1V |
| Peak closing current | 10µA |
| Length | 28.8mm |
| Dimensions | 28.8 x 28.8 x 11.23mm |
| Height | 11.23mm |
| Width | 28.8mm |
