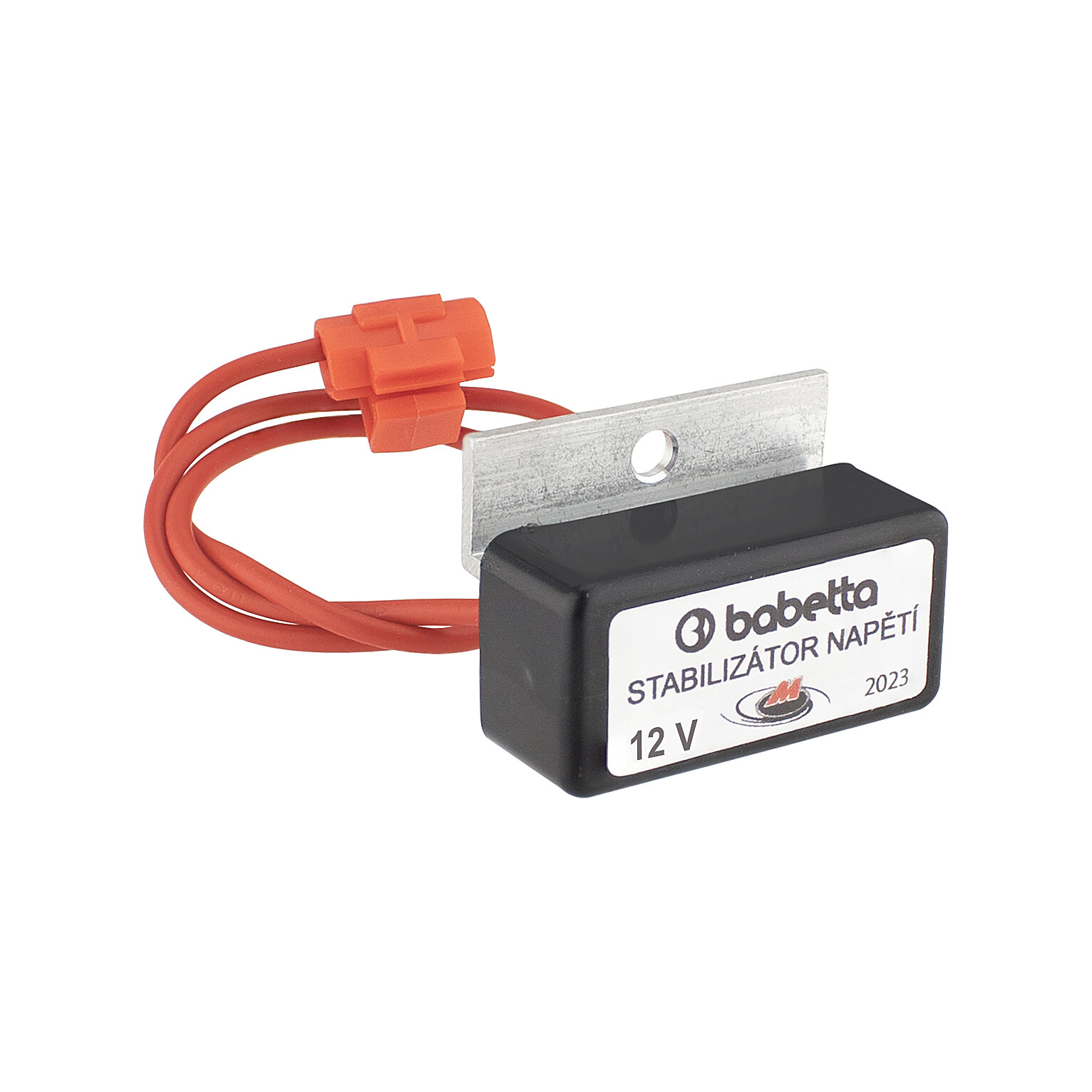

Voltage stabilizer 12V - Korádo, Babetta - Czech Republic

This voltage stabilizer is designed for Korádo and Babetta motorcycles and provides a stable 12V voltage in the lighting circuit. The product comes from the Czech Republic.

Mounting the stabilizer is easy. The metal base with a 6 mm diameter hole must be grounded by screwing it to the motorcycle frame (for the Babetta 210 model, it is recommended to place it under the tank). The free end of the stabilizer is connected to the light circuit using a clamp. The green wire of the light circuit leading from the ignition is threaded through the through hole of the clamp, and the wire from the stabilizer is then inserted into the non-through hole. Important note: If the light switch is turned off for a long time, all the electrical energy will go to the stabilizer, which may lead to its damage (burning). We recommend not leaving the light switch turned off for a long time when the engine is running.

Parameters:

• Intended for: Korádo, Babetta
• Output voltage: 12V
• Mounting: grounding on the frame (D6 hole)
• Production: Czech Republic

The set includes:

• Voltage stabilizer 12V: 1x

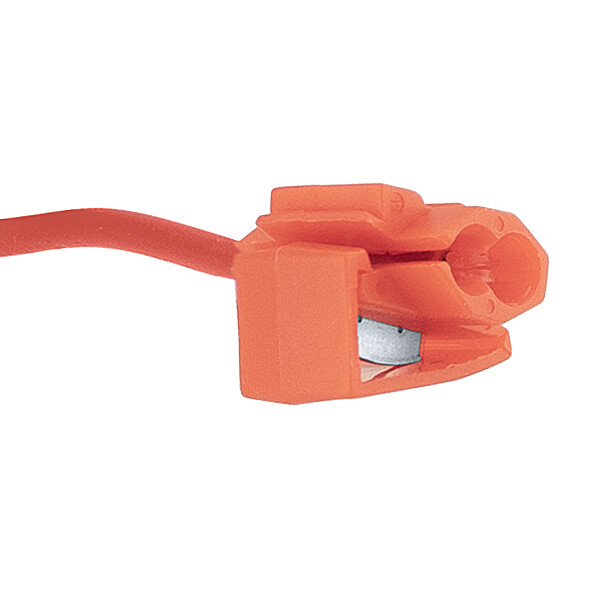

• Connecting clamp: 1x
