Rear brake light switch Simson S51 (innovation for 6V)

This stop switch kit for the Simson S51 has been developed to fit in place of the original rear wheel switch. It has better function, without changes in the wear of the jaws.

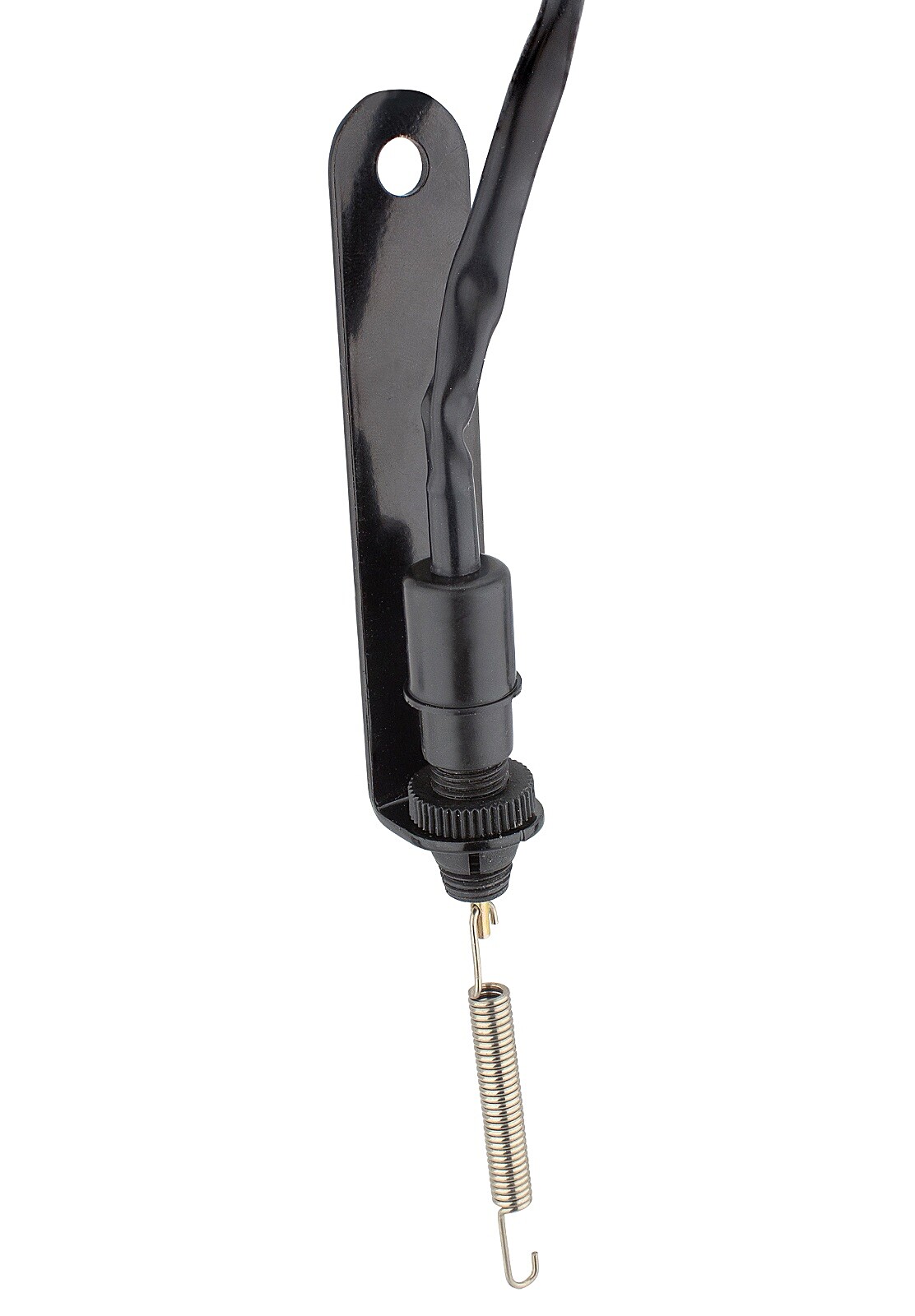

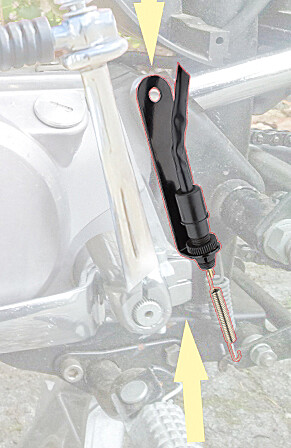

The stop switch is mounted very simply, a holder is hung on the motor screw, the switch is inserted into it and the spring is hooked to the brake pedal arm where its return spring is also held.

Ground one cable of the switch through a connector with an eyelet and connect the other end with a connecting connector to the cable that led to the rear wheel. You set the nut switch to its correct position so that it closes when the pedal is moved. This setting is already permanent, as the position of the brake pedal does not change.

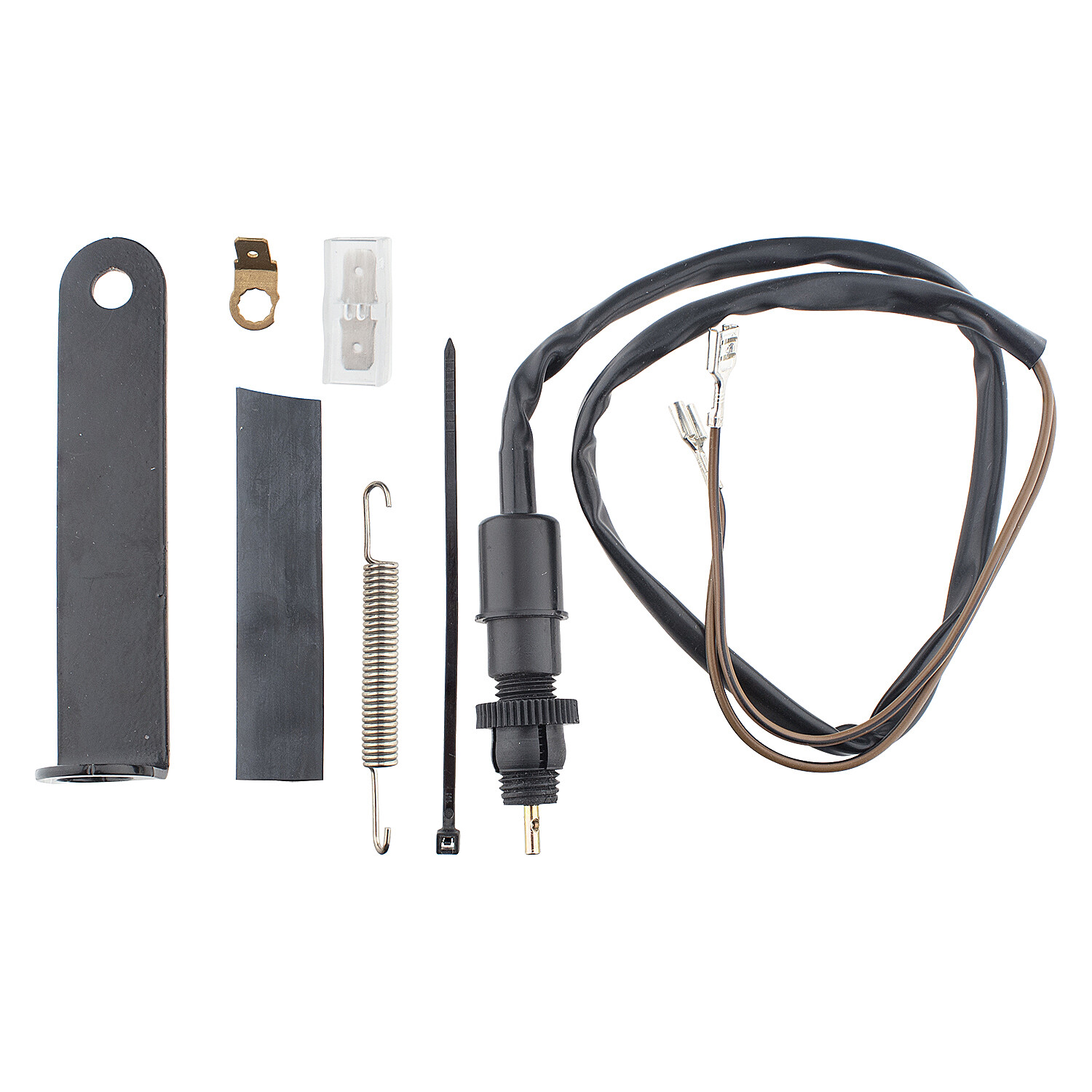

The set includes:

• 1x switch
• 1x holder
• 1x spring
• 1x connector with eyelet
• 1x connecting connector
• 1x tube
• 1x drawstring
