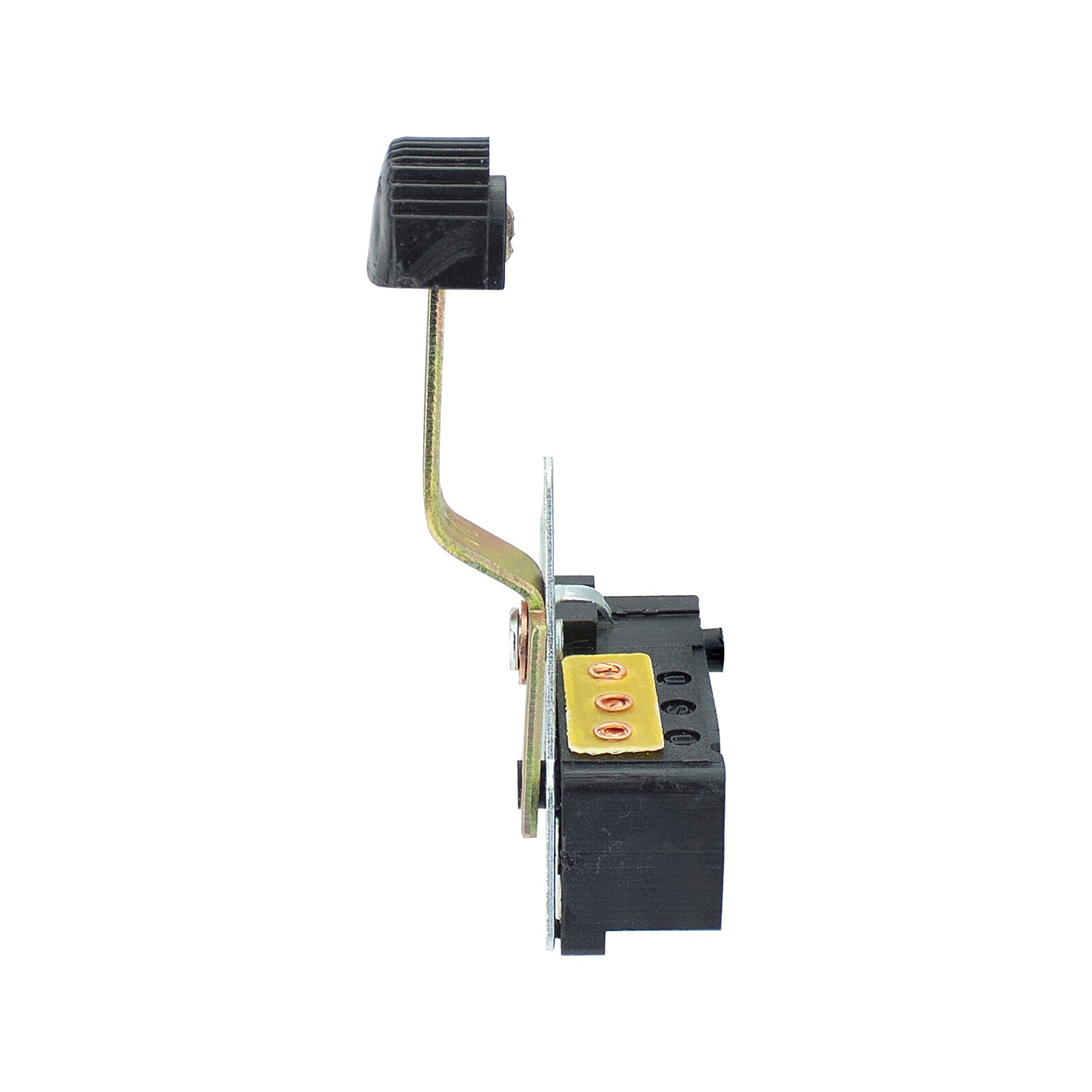

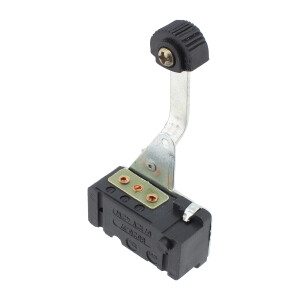

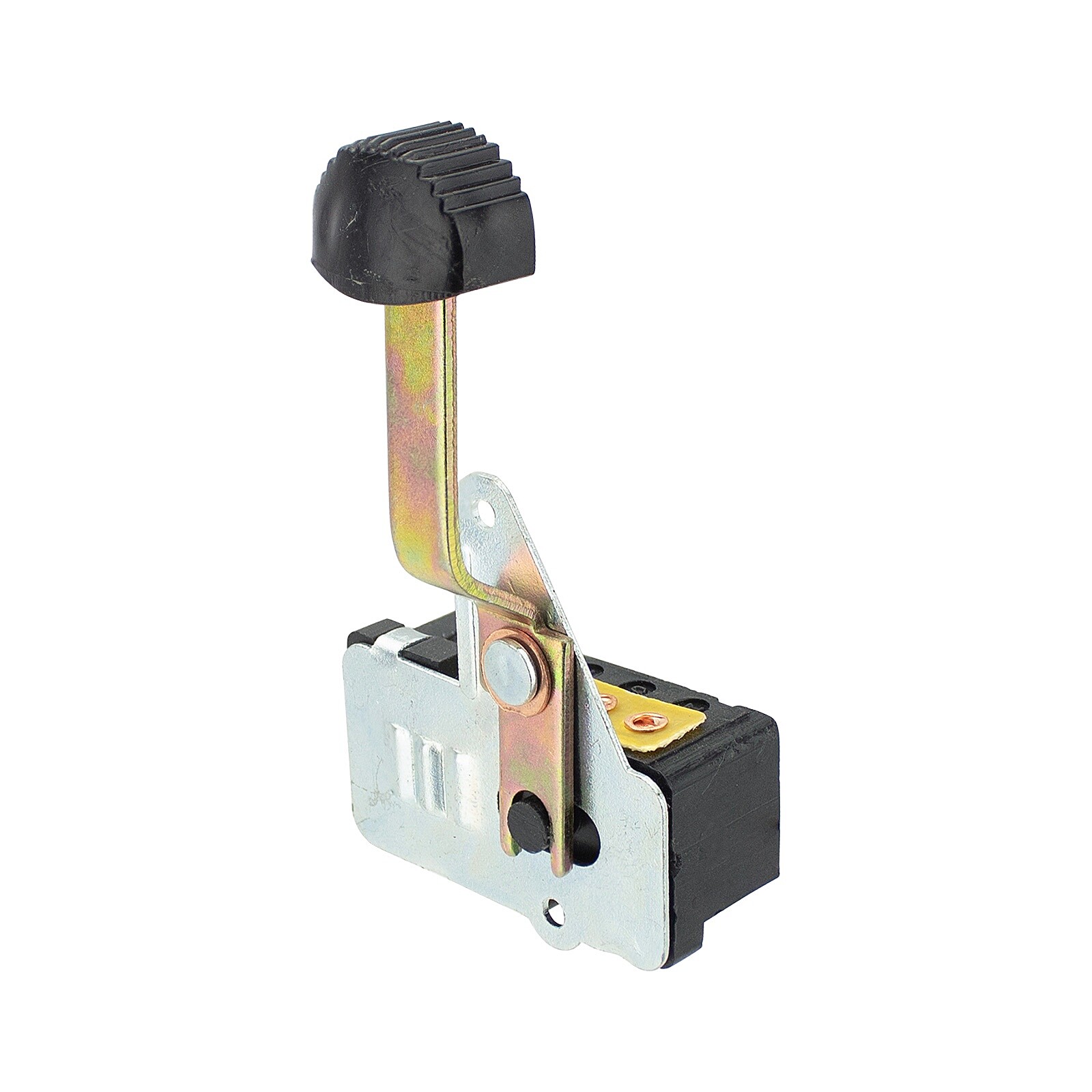

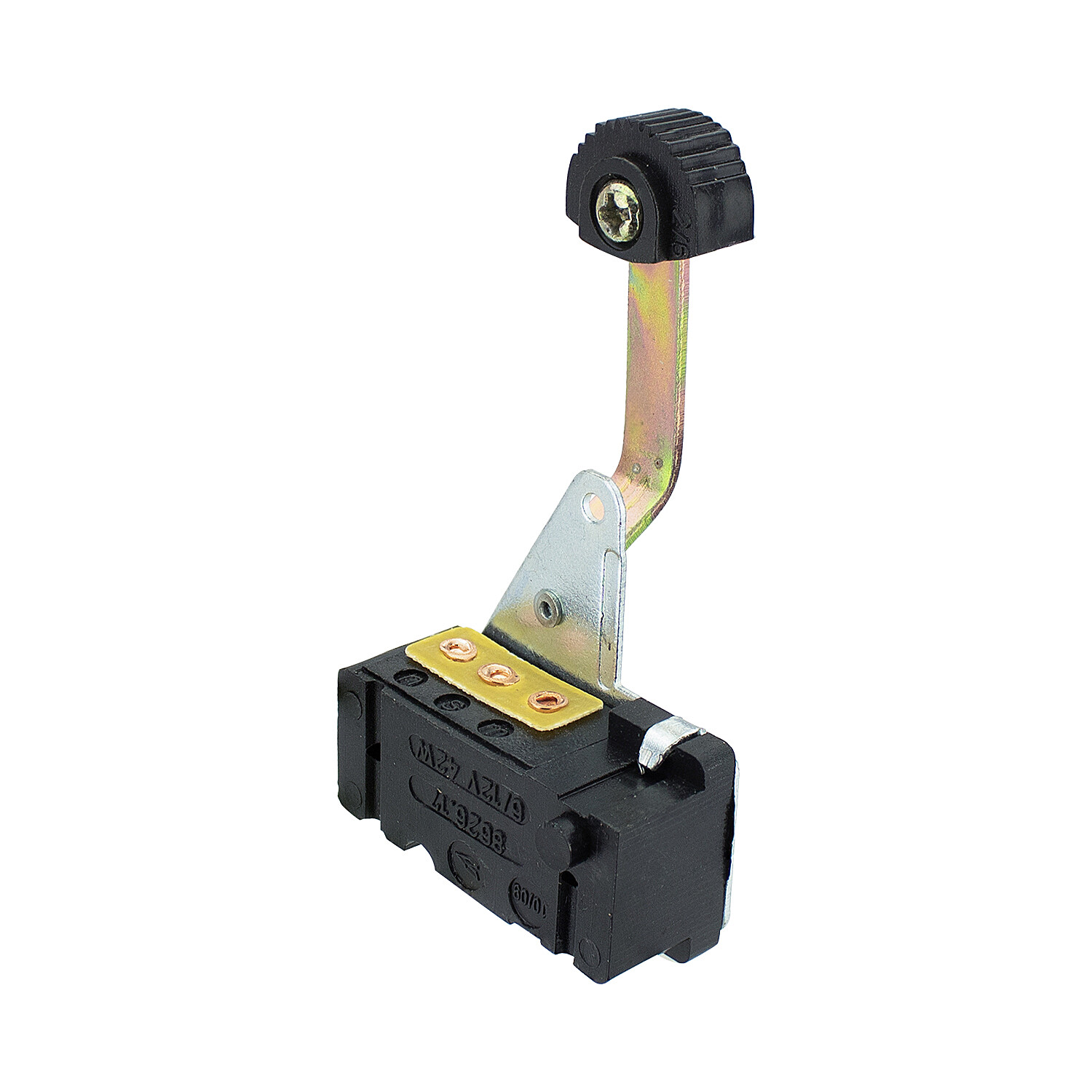

Turn signal switch for combined body - separate - MZA

The independent blinker switch is intended for combined controls on the handlebars of Jawa/ČZ, Simson, MZ ETZ motorcycles.

NOTICE :

when soldering the wires to the contacts of the switch, you need to pay more attention to the quality of the soldering , heating must be done for the shortest possible time. The storage of the contacts in the body of the switch changes during prolonged heating and thus damages their function.

Inside there is a slider that moves with the help of a shoulder strap, a spring pushes out a brass plate from this slider that goes along the three headers and connects them by locking. these headers are brought out to the package and wires are soldered to them for connection.
