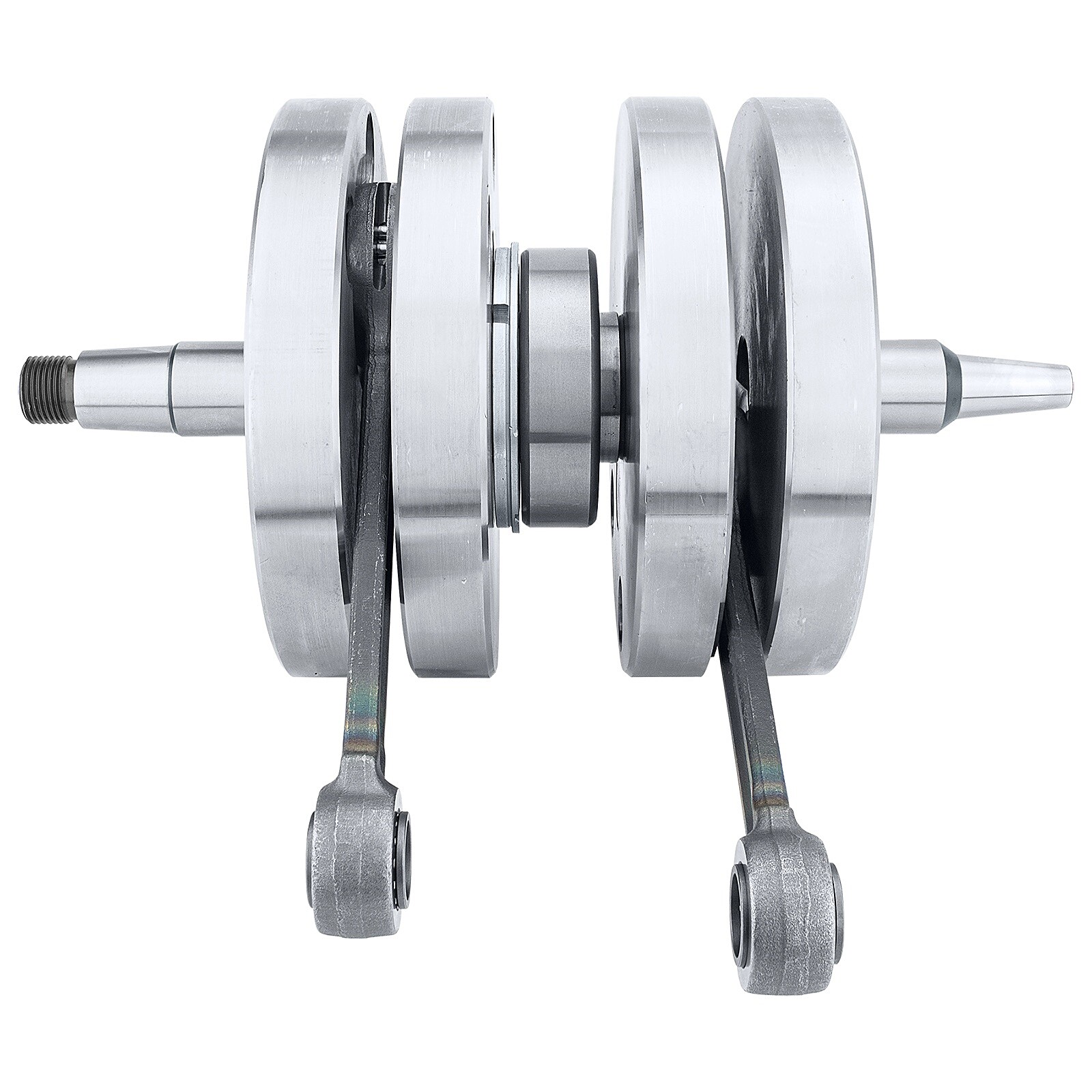

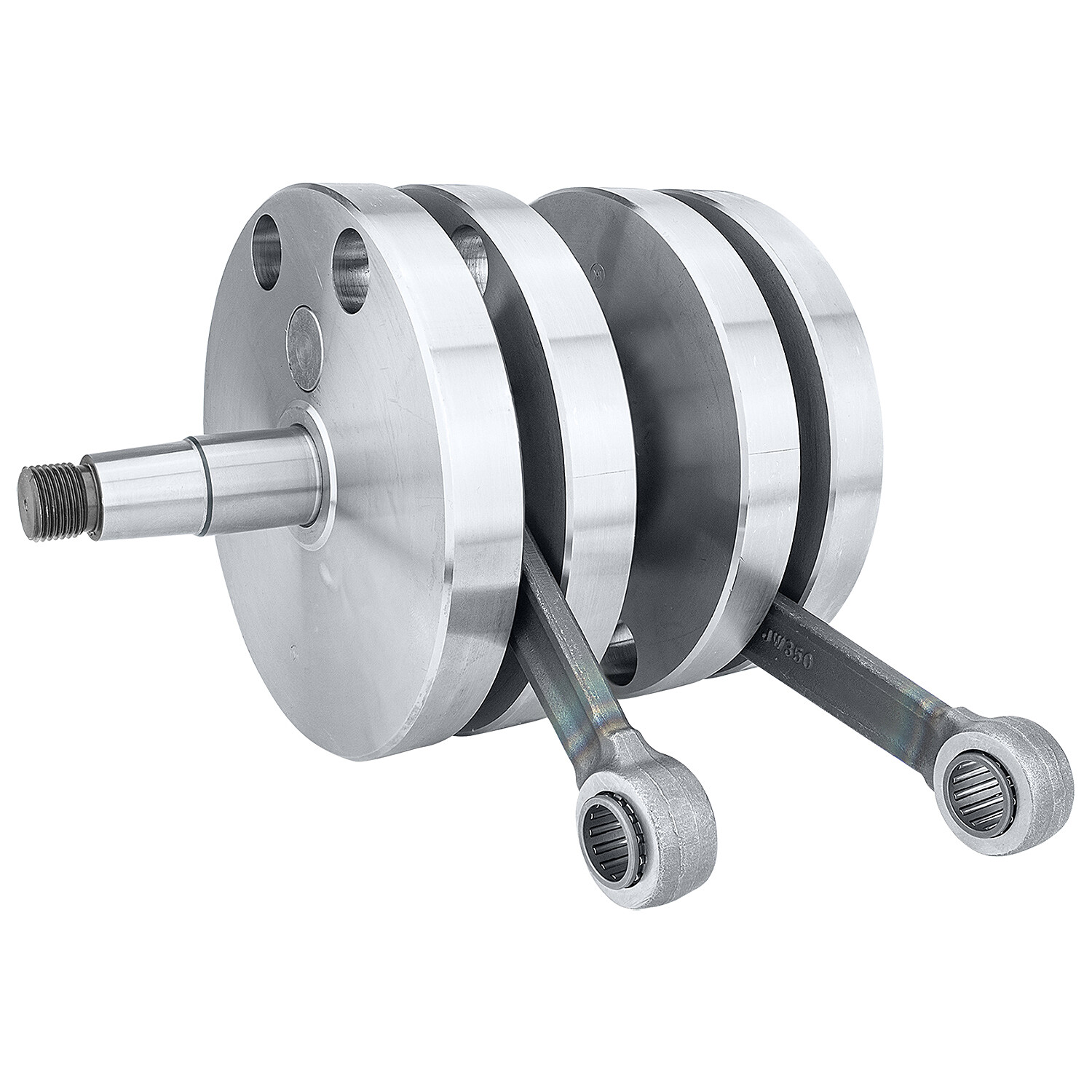

Crankshaft Jawa 350 type 354, 360, 634 - new

Crankshaft Jawa/ČZ 350 – Pérák, 354, 360, 634, ČZ 472 with dynamo – new

New crankshaft suitable for engines:

• Jawa 350 Pérák (latest type)
• Jawa 350 type 354, 360, 634
• ČZ 350 type 472 with dynamo.

Assembled in the Czech Republic, centered, meets all standards and tolerances.

Parameters:

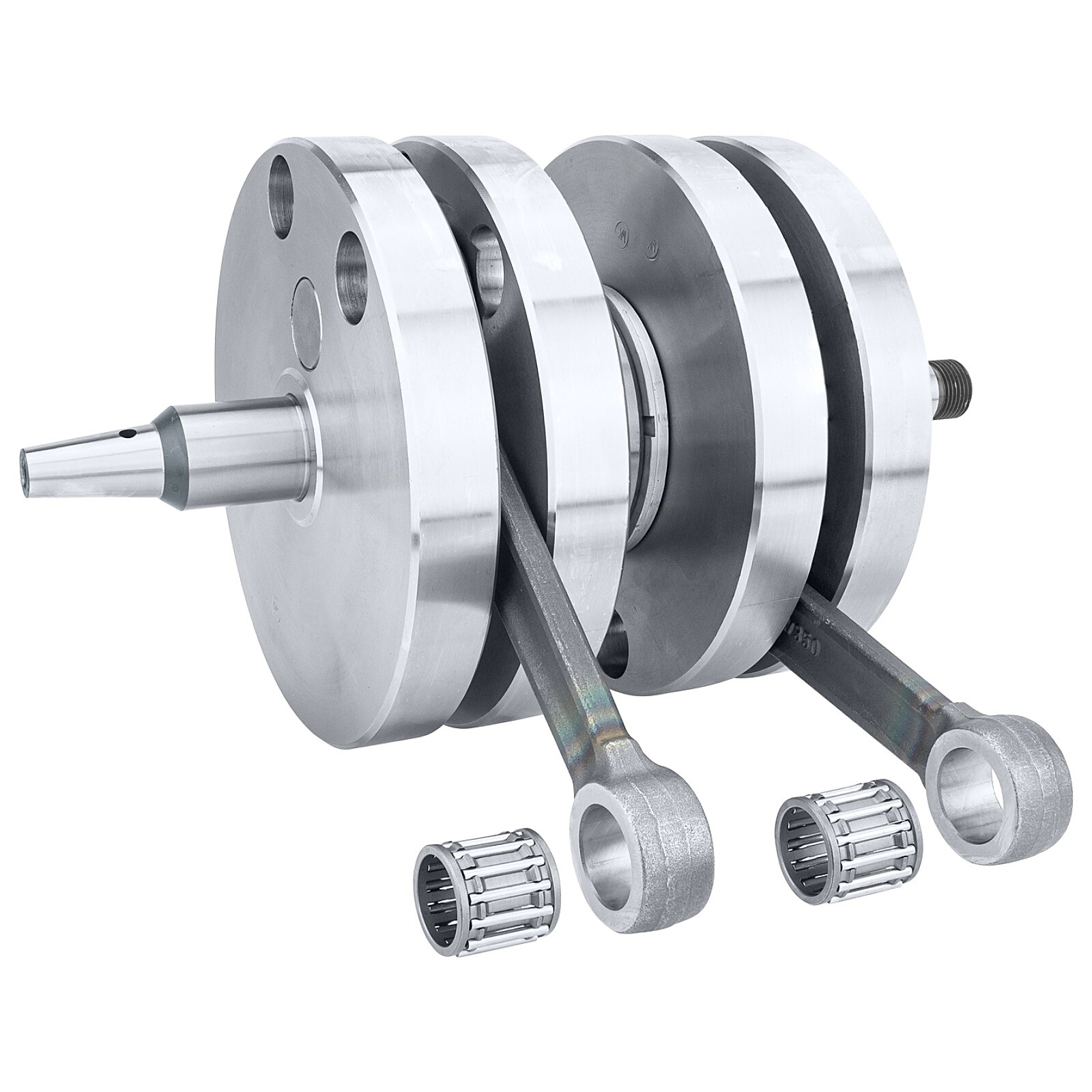

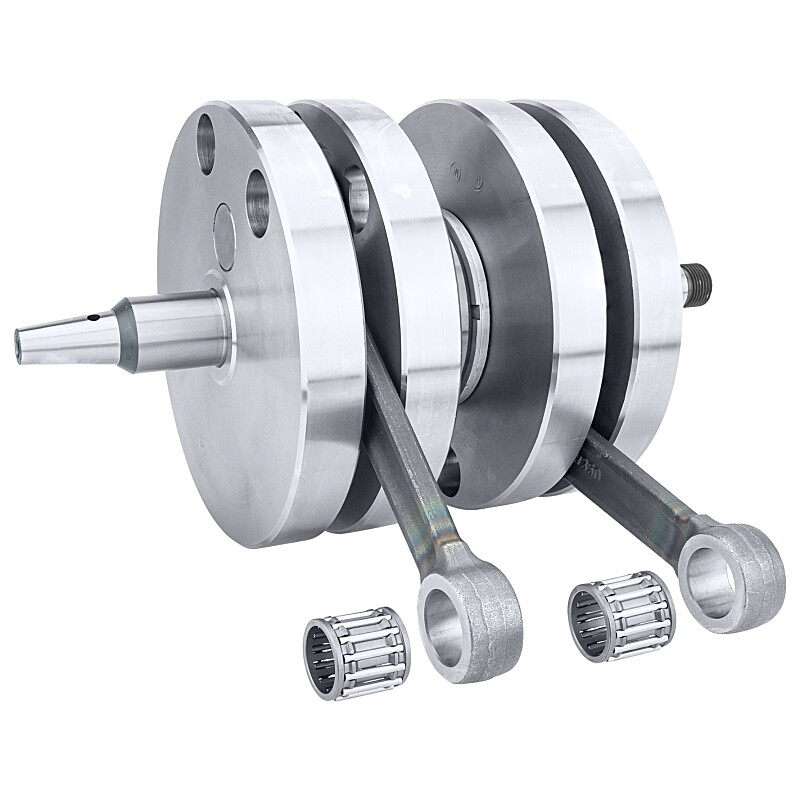

• Piston pin bearing: needle bearing for pin D16 mm
• Alternative mounting: possible for D15 mm by replacing the needle cage
• Piston pin: not included
• Connecting rod: CKR
• Center bearing: ZVL

Requires professional assembly - it may fall apart if handled carelessly.

We ship in a wooden shipping box, which must be returned after unpacking.
Just close it again and contact us – we will arrange for the return at our expense .
The detailed procedure is in the attached image.
