Front complete Jawa 350 type 354-634 - profi
71.78 € excluding VAT
In stock
Content
Jawa 350 front end is designed for engines 354 Kyvačka, 360 Panelka, 623 and 633 Bizon, 632, 634, and ČZ 471, 472. It is also mounted in engines Jawa 350 Pérák when adjusting the bearing of the crank on bearing 6306.

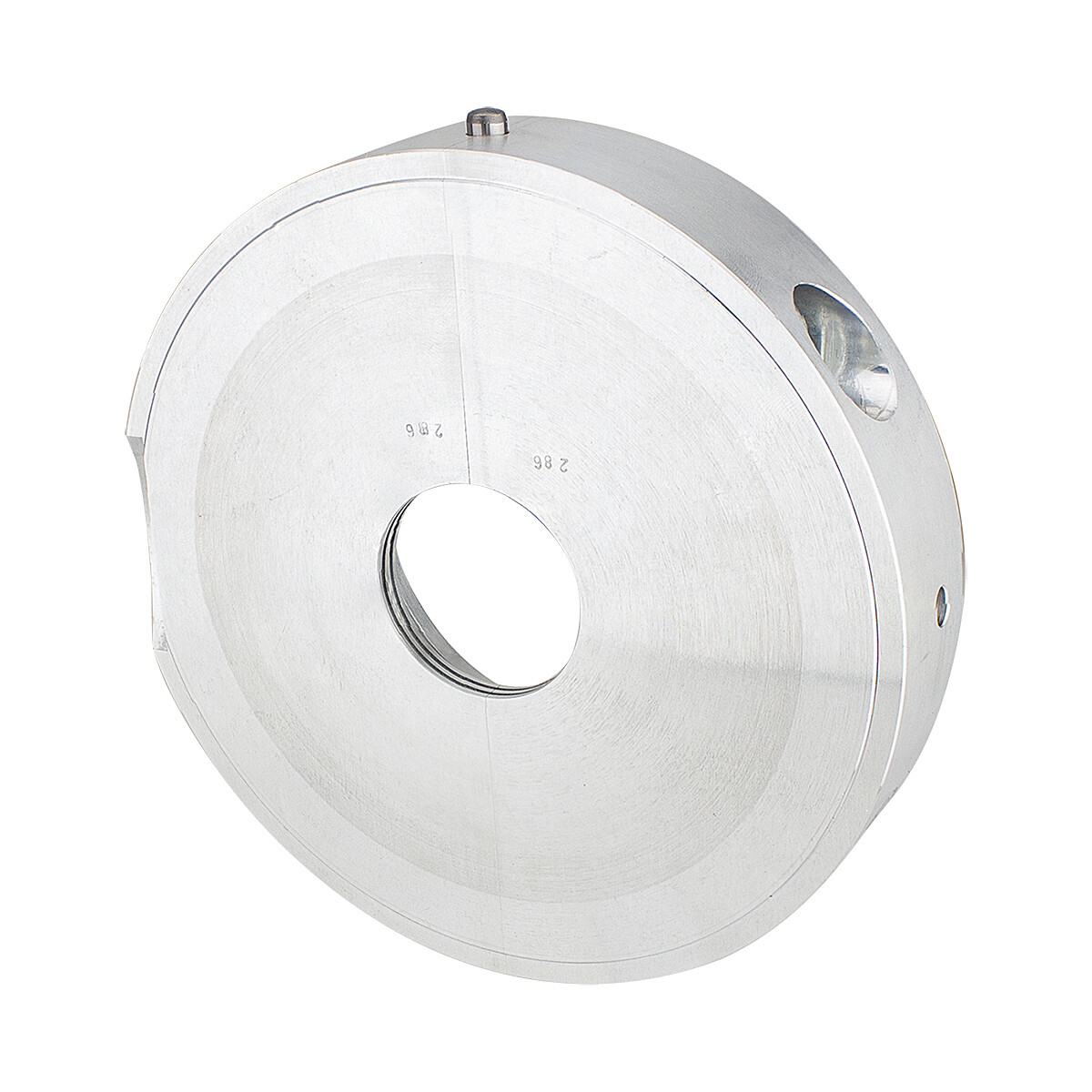

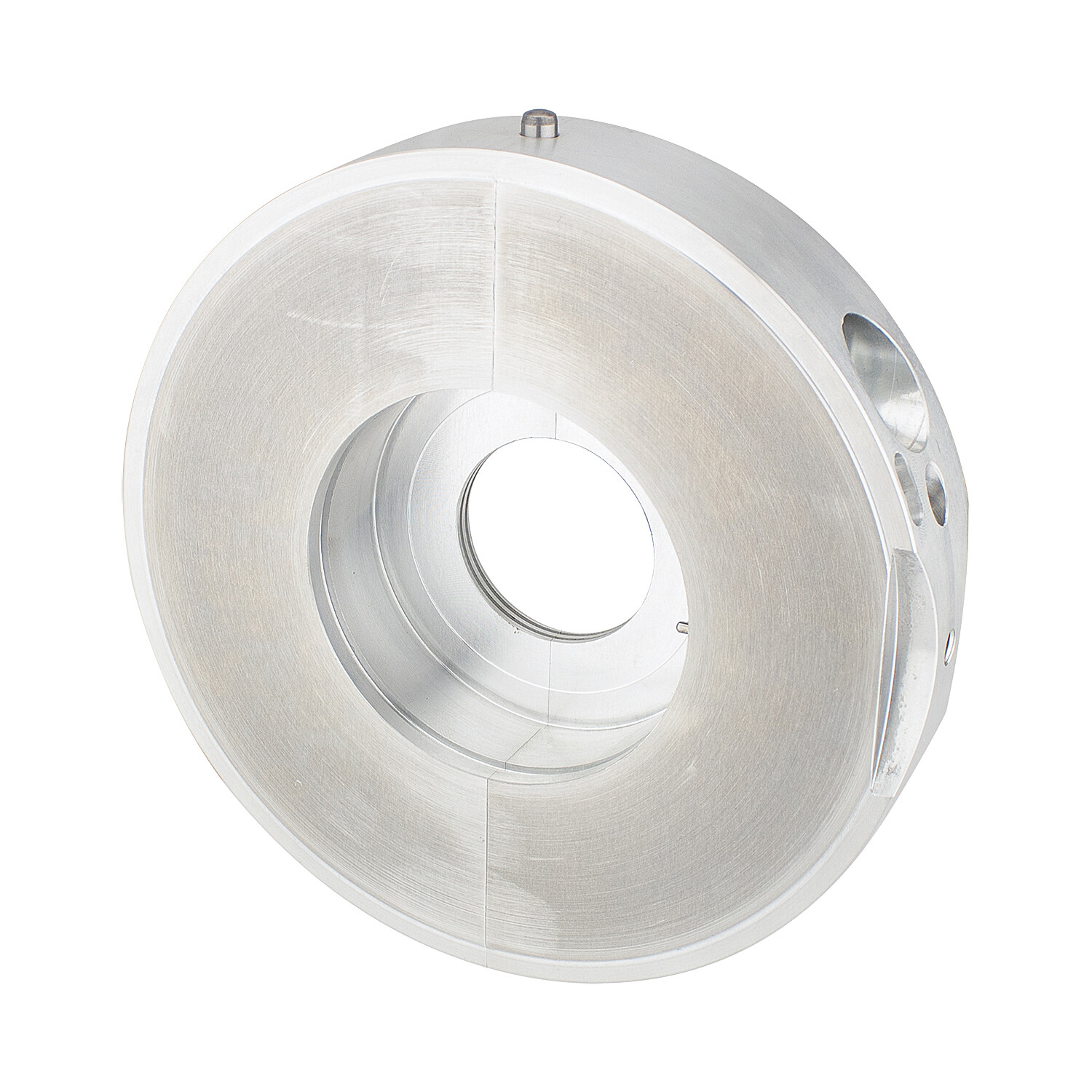

The front end is an aluminum center for the crank for Jawy/ČZ two-cylinder engines with one central bearing with the basic dimension.
It mainly replaces the lightweight centers that were used in the newer Jawa 350 engines type 632, 634 and ČZ 471, 472, where there is usually a small leak between the cylinders in the crankcase. In the case of engines where a chipped type of face was used, the bearing surface of the face is often damaged on the engine block, with this full face you will achieve an instant tightness and strength of the bearing, and it is enough to use this in the basic size.
This is a CZ product produced with new and more accurate technology.

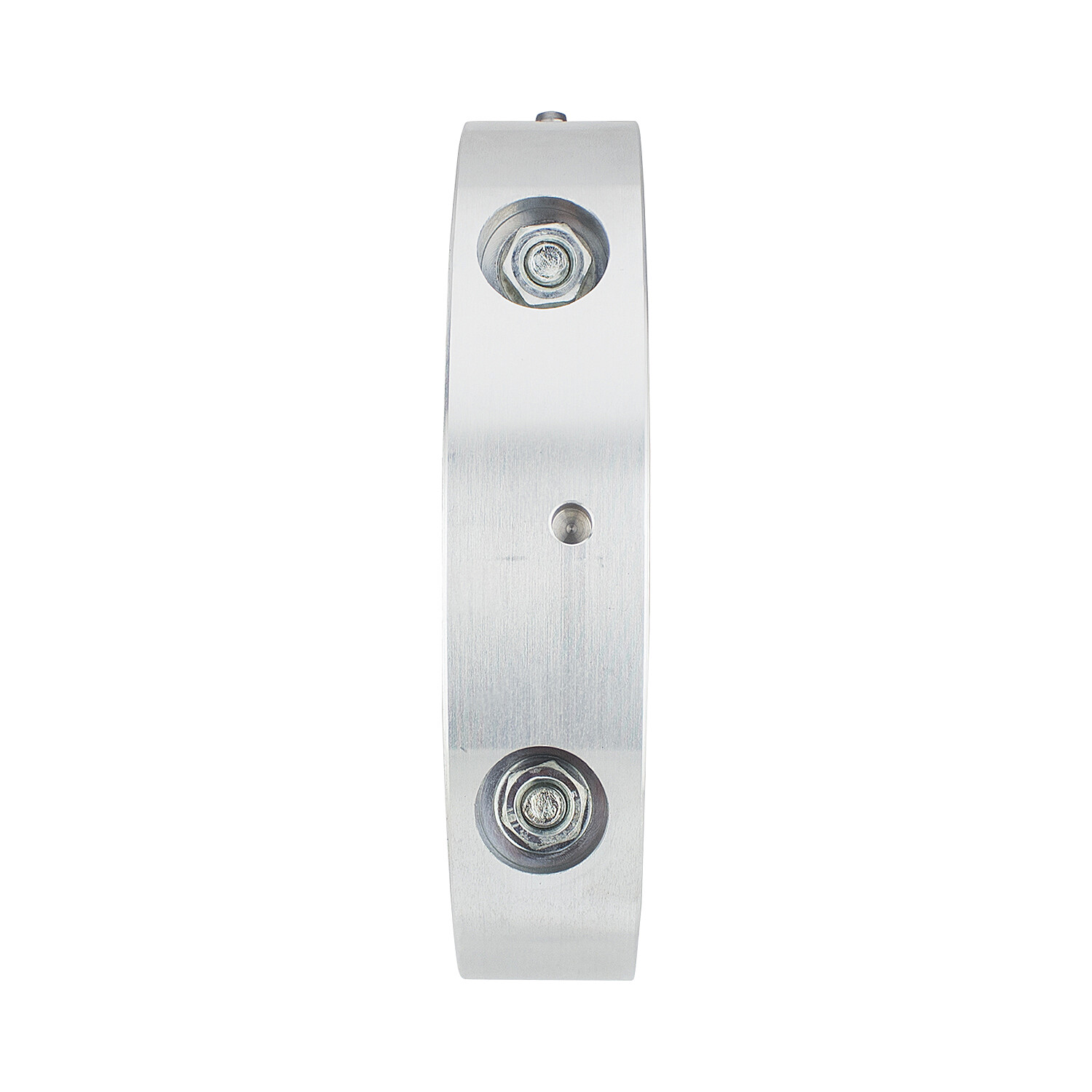

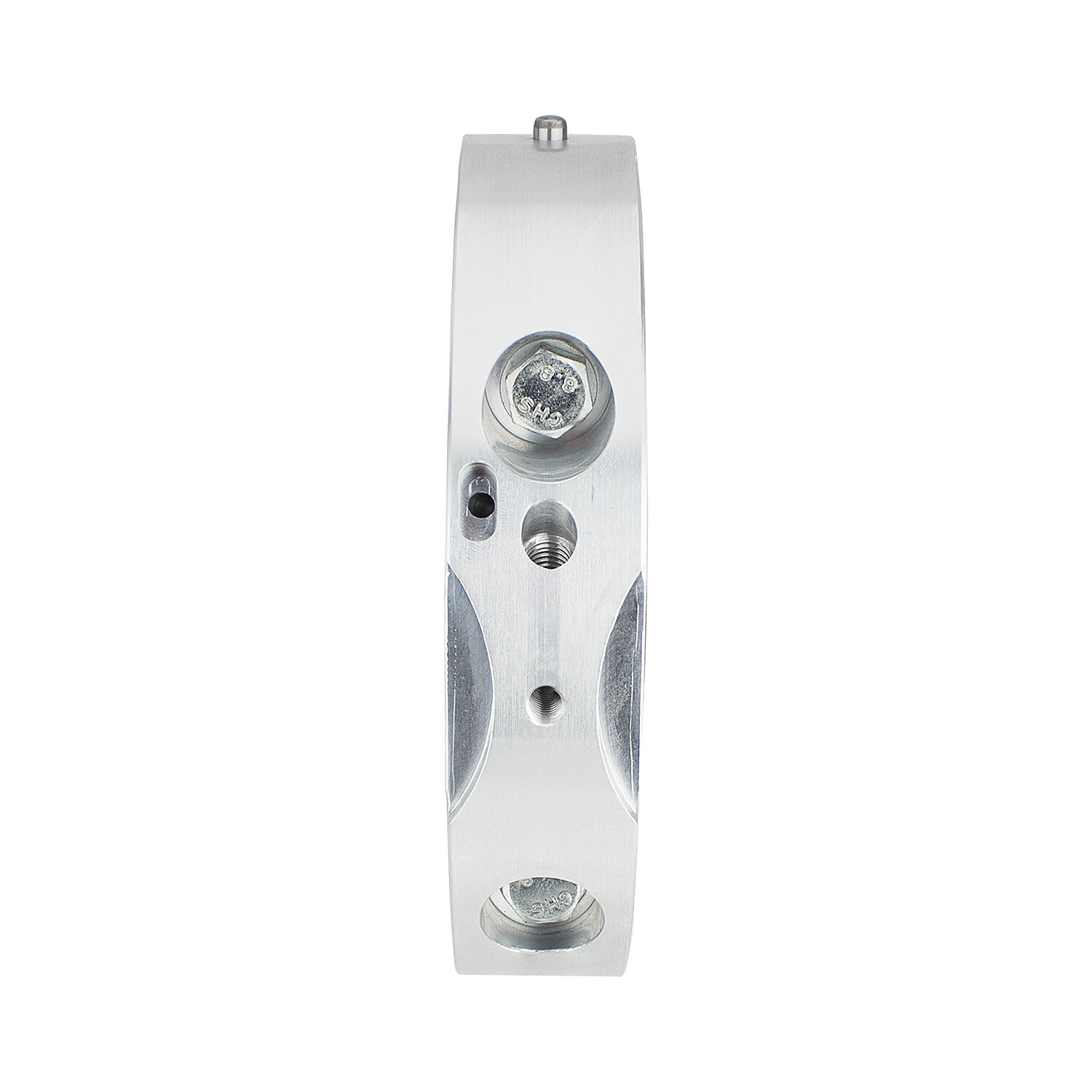

The front is modified so that it can be screwed through the engine block like the original Jawa 350 type 354 or just centered with a pin like the original type 360, 634 or ČZ 471, 472.
The screws for pulling down are part of the face together, the pin is also part of the package.
