Čelo úplné Jawa 350 typ 354-634 - profi - OPRAVNÉ (+ 0,2 mm)

Jawa 350 front end is designed for engines 354 Kyvačka, 360 Panelka, 623 and 633 Bizon, 632, 634, and ČZ 471, 472. It is also mounted in engines Jawa 350 Pérák when adjusting the bearing of the crank on bearing 6306.

This REPAIR face is intended for engines where the original center knocked out the engine blocks. it is larger by 0.2 mm compared to the standard, which sufficiently ensures the strength of the bearing in the engine block.

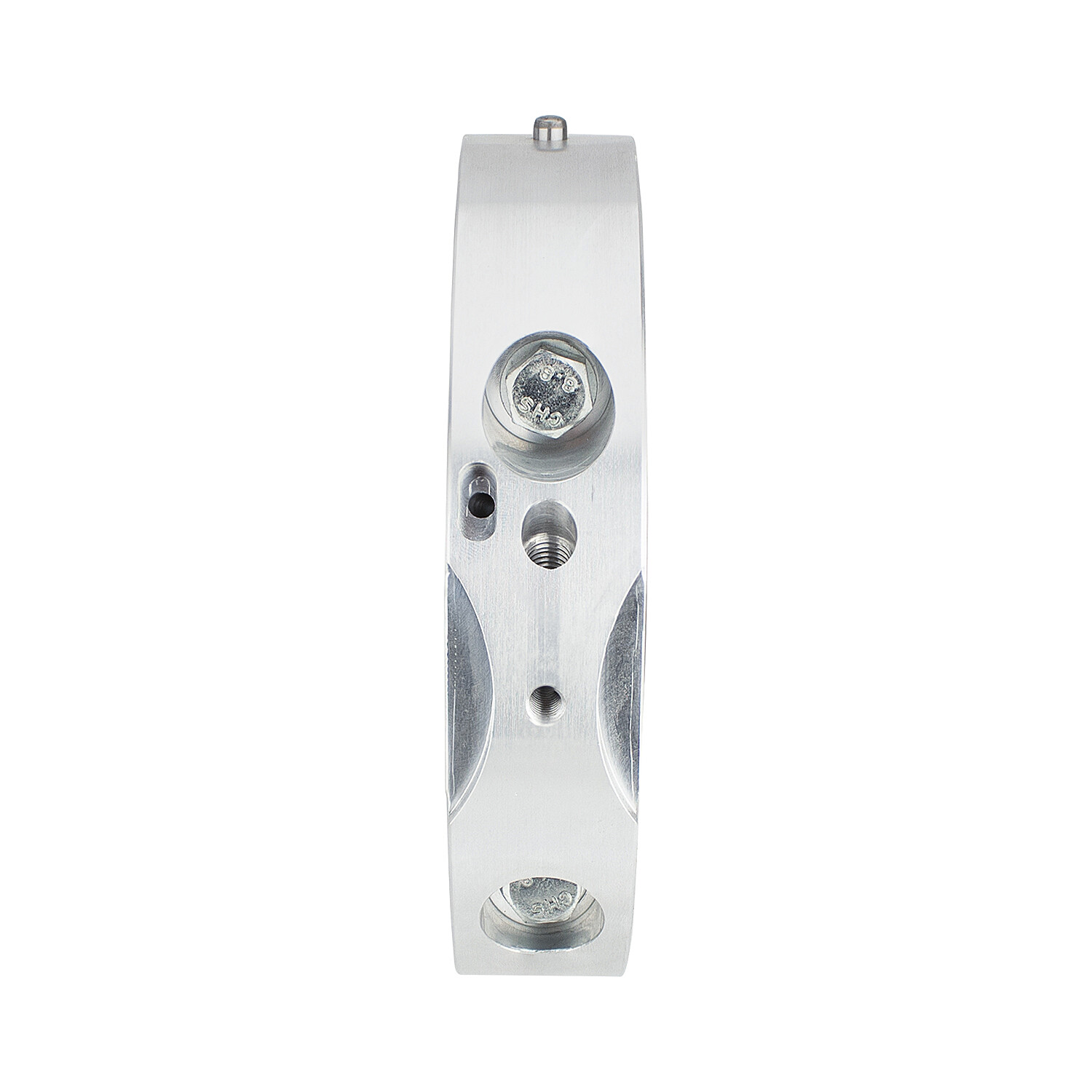

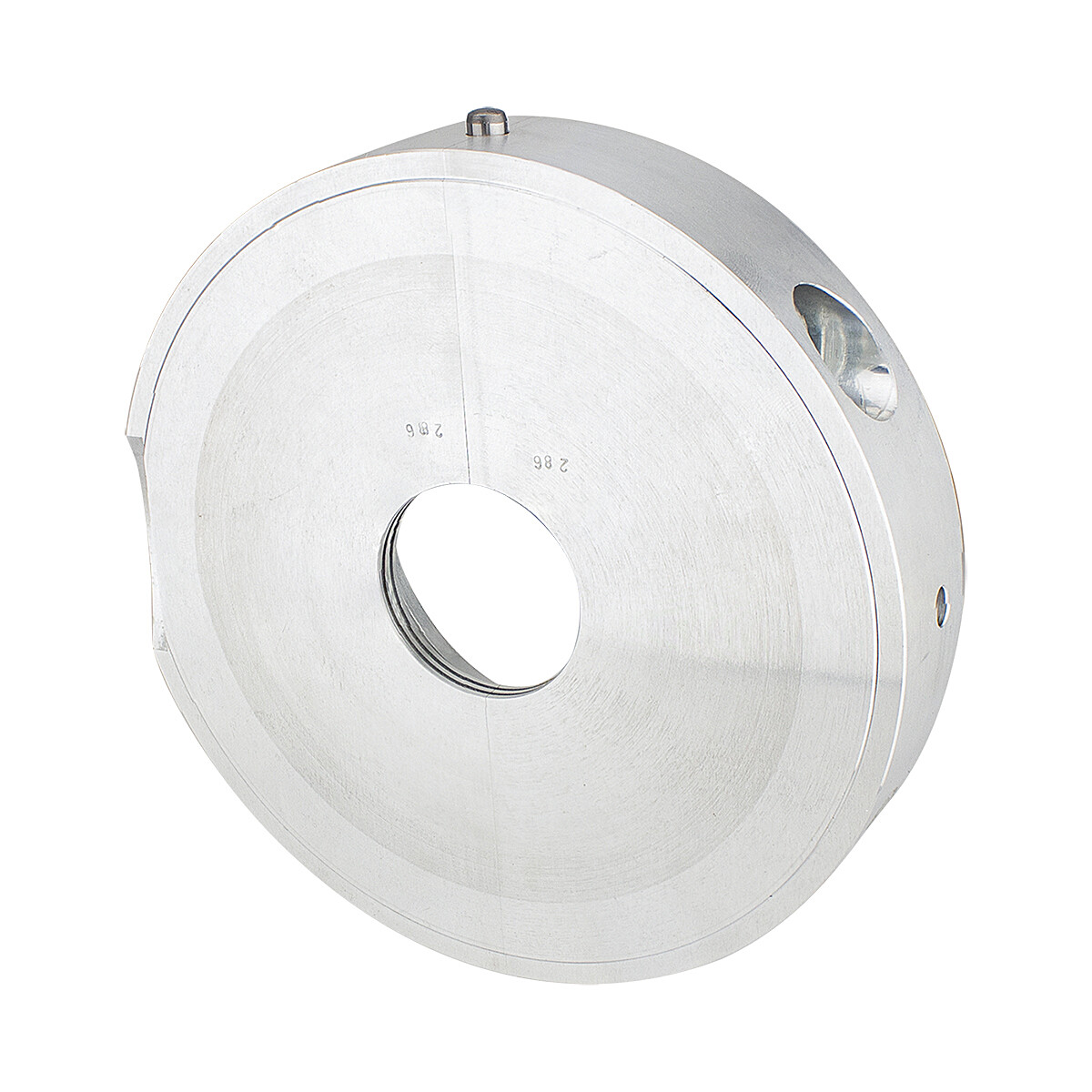

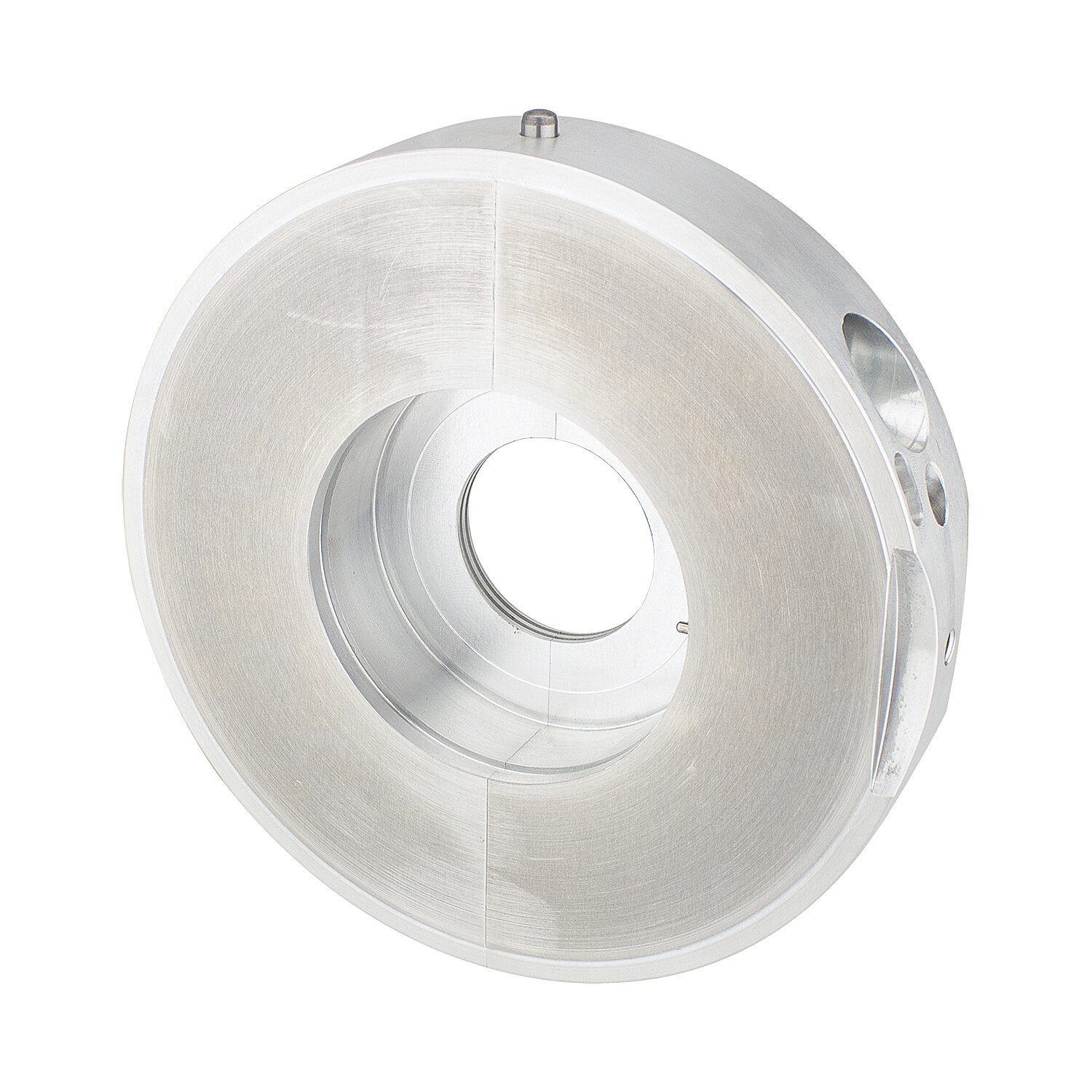

The complete front end is an aluminum center for the crank for Jawy/ČZ two-cylinder engines with one central bearing.

It mainly replaces the lightweight centers that were used in the newer Jawa 350 engines type 632, 634 and ČZ 471, 472, where there is usually a small leak between the cylinders in the crankcase.

This is a CZ product manufactured with new and more accurate technology.

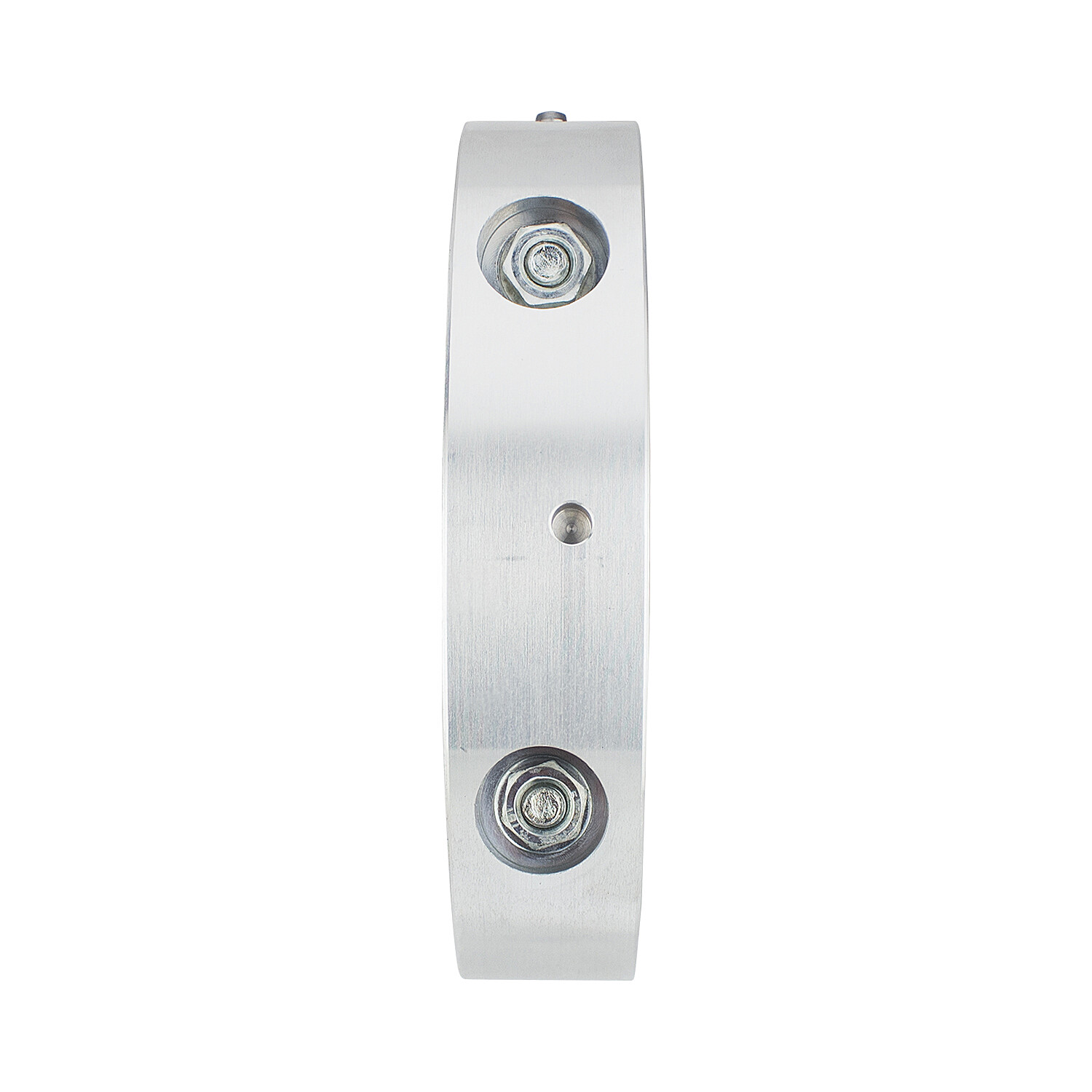

The front is modified so that it can be screwed through the engine block like the original Jawa 350 type 354 or just centered with a pin like the original type 360, 634 or ČZ 471, 472.

The screws for pulling down are part of the face together, the pin is also part of the package.
