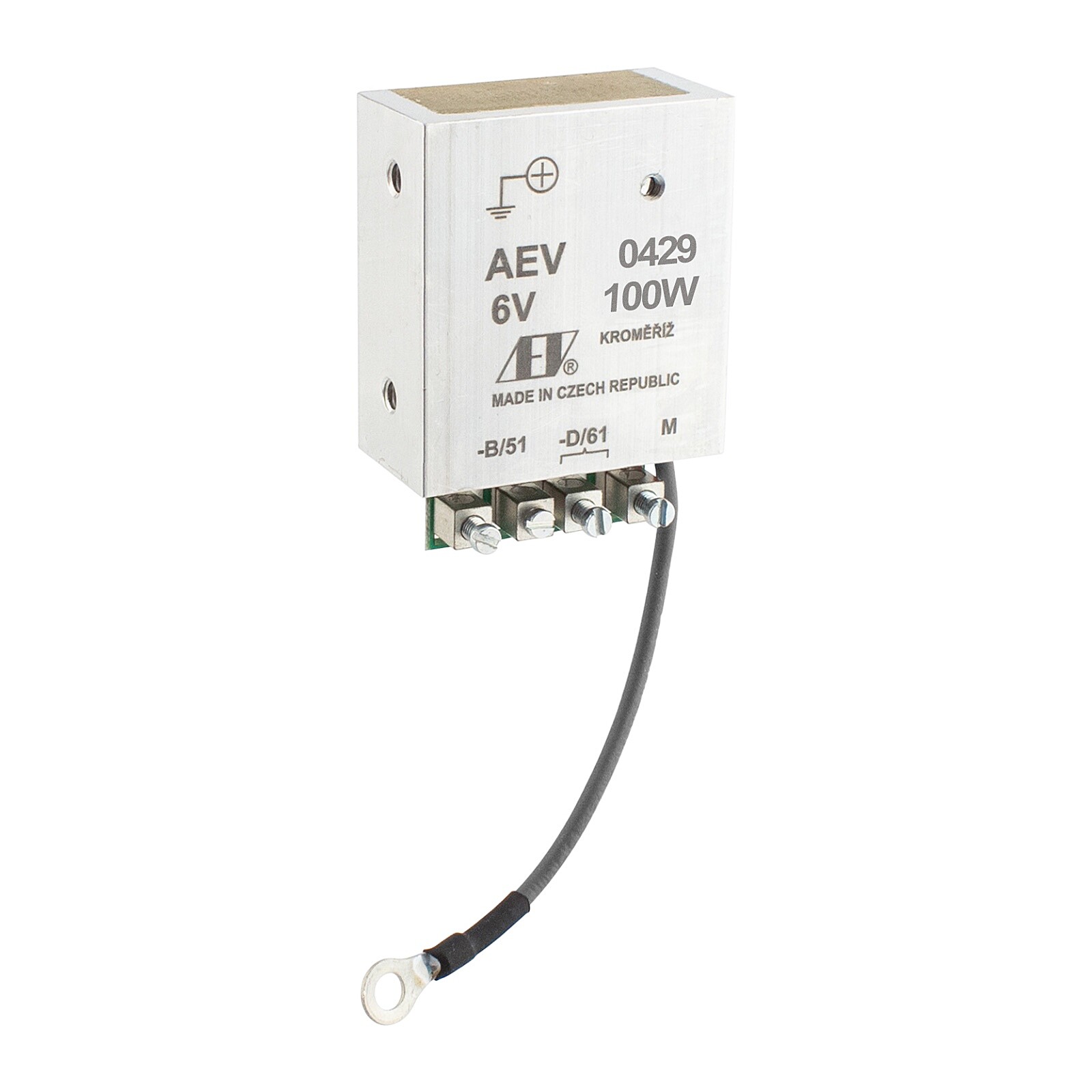

Dynamo regulator 6V 100W AEV with grounding (-)

Dynamo regulator 6V 100W AEV with grounding (-)
Dynamo regulator 6V 100W AEV with grounding (-)
Dynamo regulator 6V 100W AEV with grounding (-)
17.94 € incl. VAT
15.07 € excluding VAT
Availability
Out of stock
Product code: PAL0429
Weight: 84 g
Manufacturer: Česká Republika
Product out of stock and it is not possible to purchase it.
Monitor stocking

Content

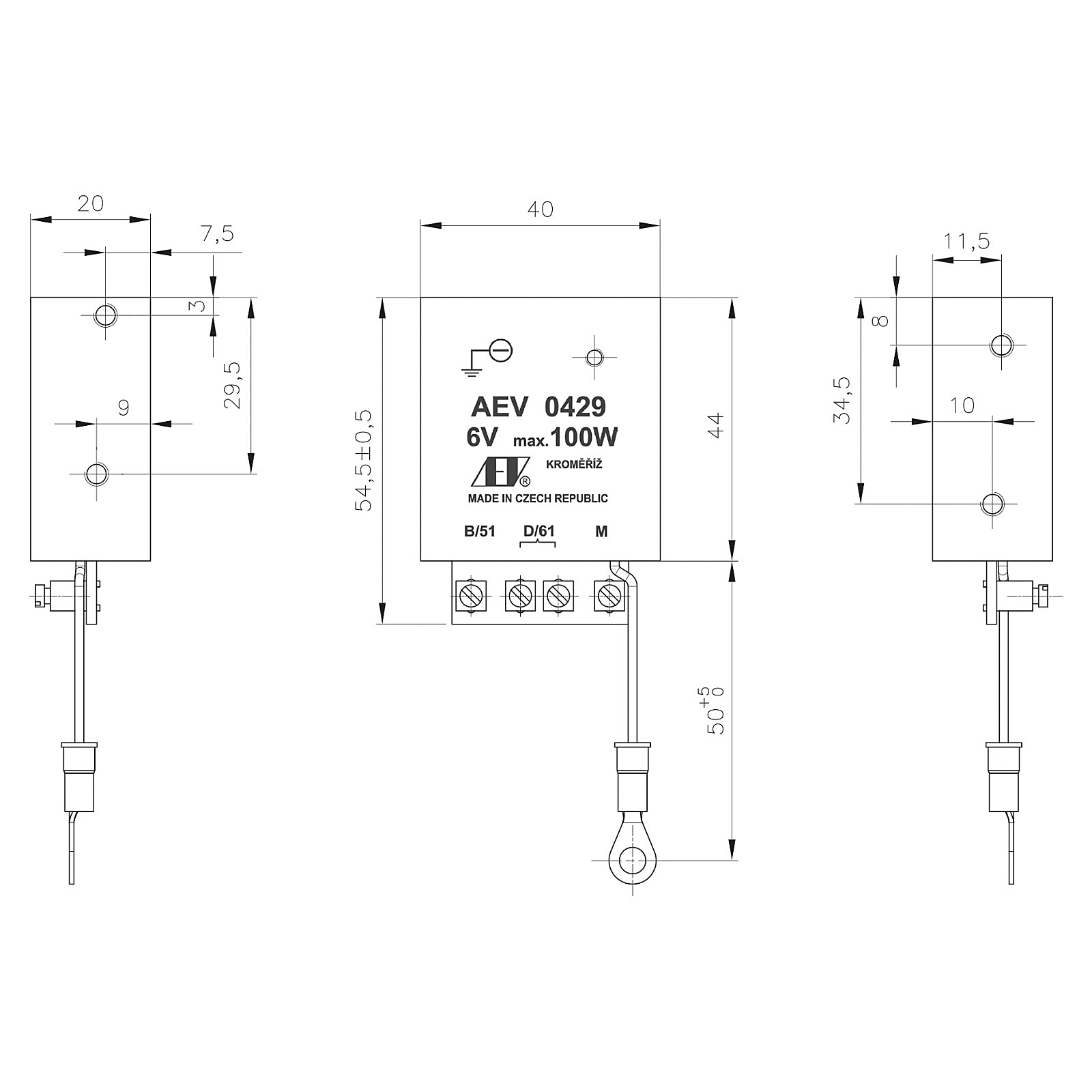

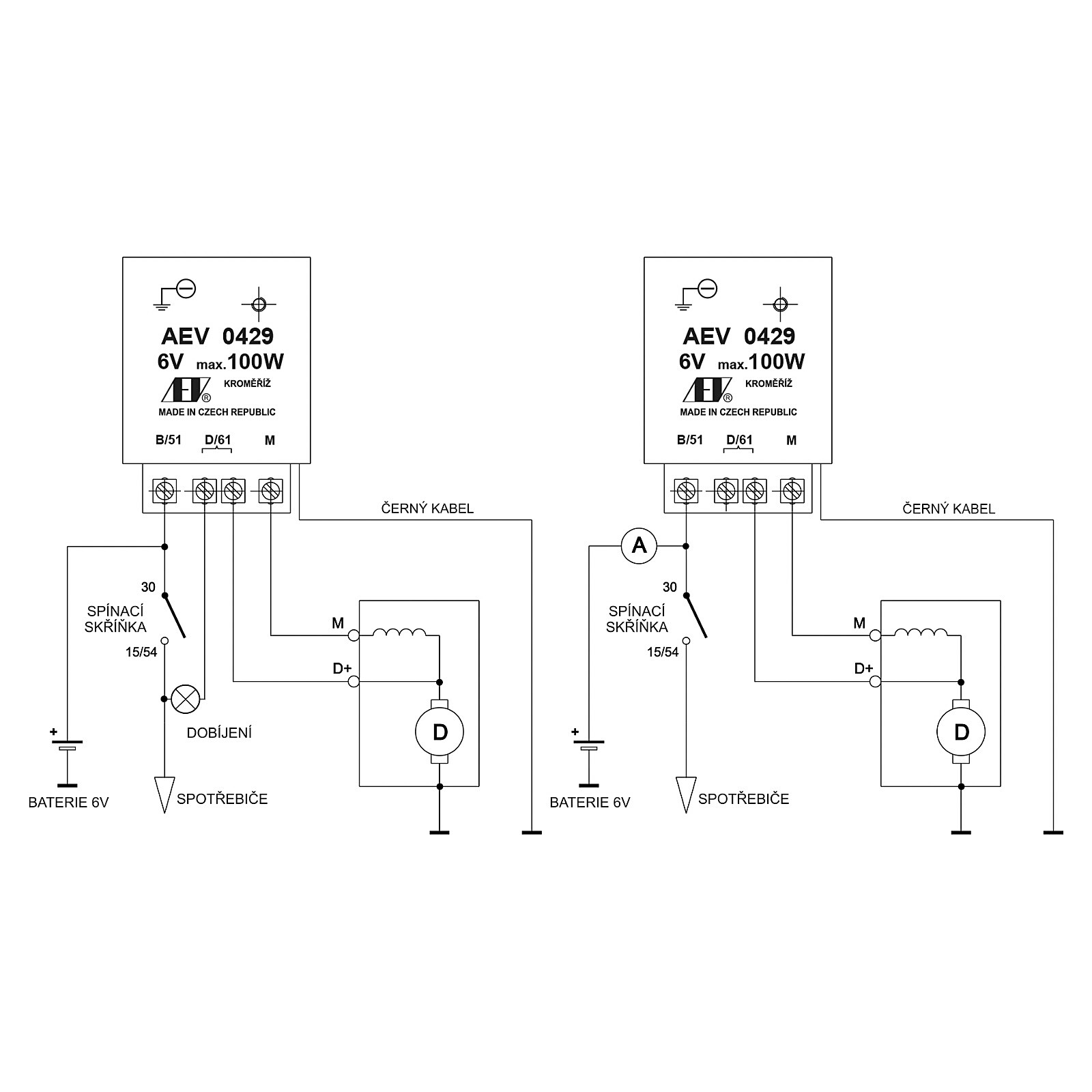

Electronic regulator for dynamos with - a field on the frame. The regulator is intended for dynamos of vehicles with a 6V a - field on the chassis. In terms of electrical and dimensional parameters, the regulator is intended as a replacement for electromechanical regulators for all standard dynamos of JAWA and ČZ motorcycles. The regulator is mounted directly instead of the original regulator, without any modifications. A diagram with a detailed description of connection and assembly is also included.

Technical parameters:

  • Nominal mains voltage: 6V
  • Regulation type: negative
  • Nominal dynamo power: max. 100W
  • Maximum value of excitation current: 4A
  • Working temperature: -20°C / 90°C
  • Minimum field winding resistance: ≥2Ω
  • Earthed battery pole: minus
  • Regulated dynamo voltage: 7.3±0.1V
  • Current limitation: none
  • Quiescent current:
