Dynamo regulator 6V/60W AEV with grounding ( - )

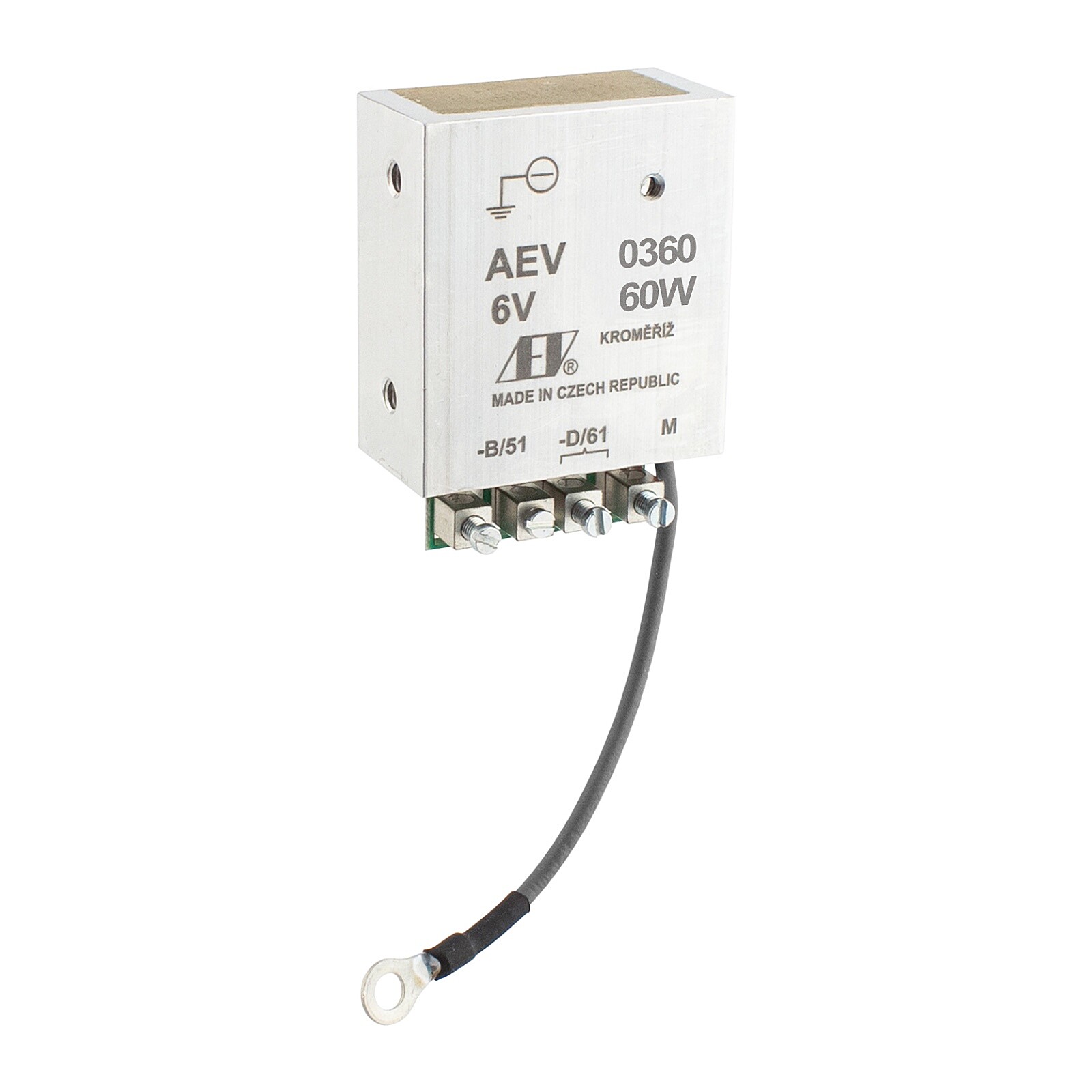

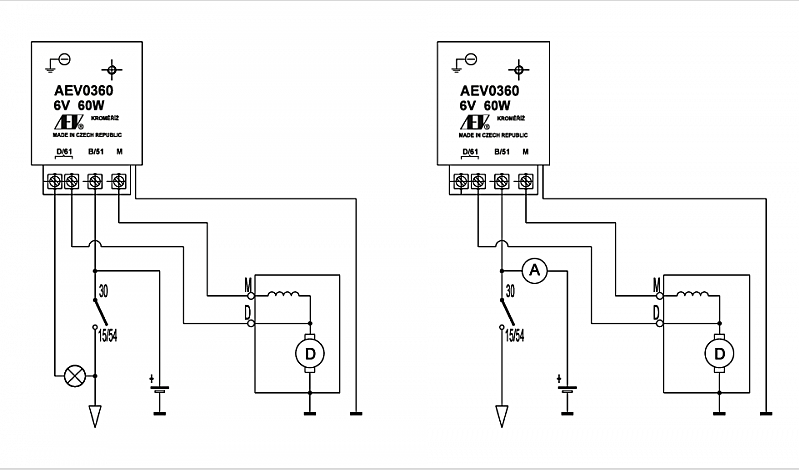

The AEV0360 regulator is intended for 6V dynamos with a minus grounding on the battery (there is also a minus grounding sign on the dynamo label). Dynamo power up to 60 W, which were 45, 50, 55 W most often with ČZ 476, 477, 487, 488. The regulator provides regulation of the output voltage of the dynamo, protection against current overload and reverse switch function. A reverse switch separates the battery from the dynamo to prevent reverse current from the battery to the dynamo when the engine is stopped or when the dynamo fails.

BEWARE OF REVERSING THE BATTERY !!!

Technical parameters:

• Nominal mains voltage: 6V
• Regulation type: negative
• Nominal dynamo power: 60W
• Maximum value of excitation current: 4A
• Working temperature: -20°C / 90°C
• Minimum field winding resistance: ≥2Ω
• Earthed pole of the accumulator: minus
• Dynamo regulated voltage: 7.3±0.1V
• Current limit: 9.0 A ±5%
• Quiescent current:
