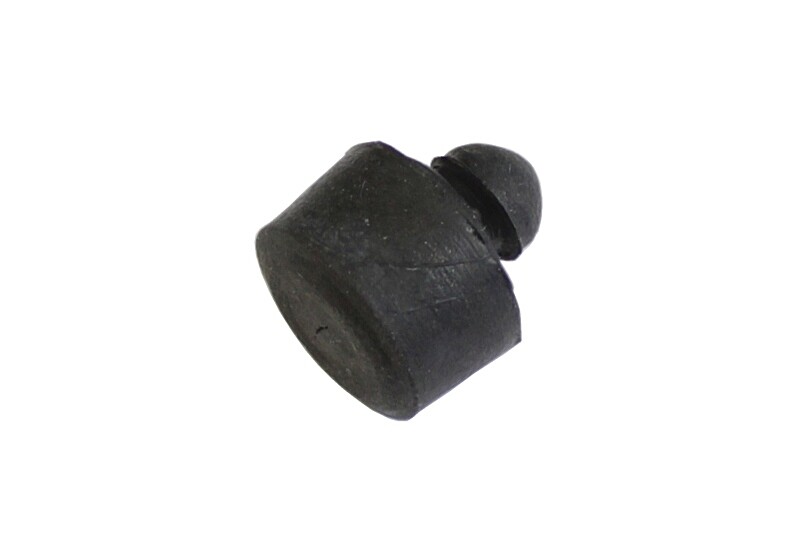

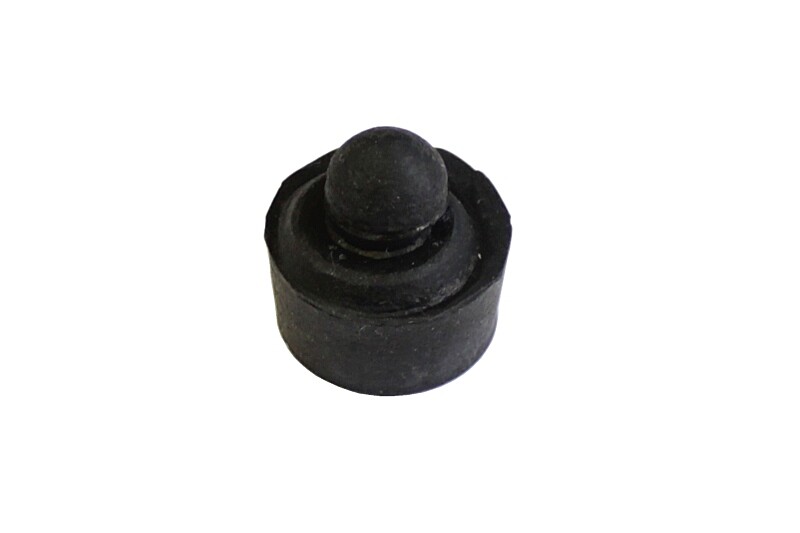

Simson saddle stop, MZ ETZ - small

The rubber seat stop is pushed into the seat plate.

Designed for motorcycles:

• Simson S51 - Enduro, Electronics (for motorcycle - 4 pcs)
• Simson SR50 - Scooter (for motorcycle - 4 pcs)
• MZ ETZ - 125, 150, 250, 251 (for motorcycle - 2 pcs)

Parameters:

• Total stop length: 22 mm
• length of the protruding part (above the plate): 14 mm
• the protruding part is slightly conical - upper diameter: 18.5 mm
• the protruding part is slightly conical - bottom diameter: 19.5 mm
• the protruding part still has a rebound (sitting on the sheet): 15 mm / height: 3 mm (included in the length of the protruding part above the sheet)
• sheet metal groove: 2 mm
• diameter of the shaft (to the hole in the sheet): 7mm
• material: rubber
