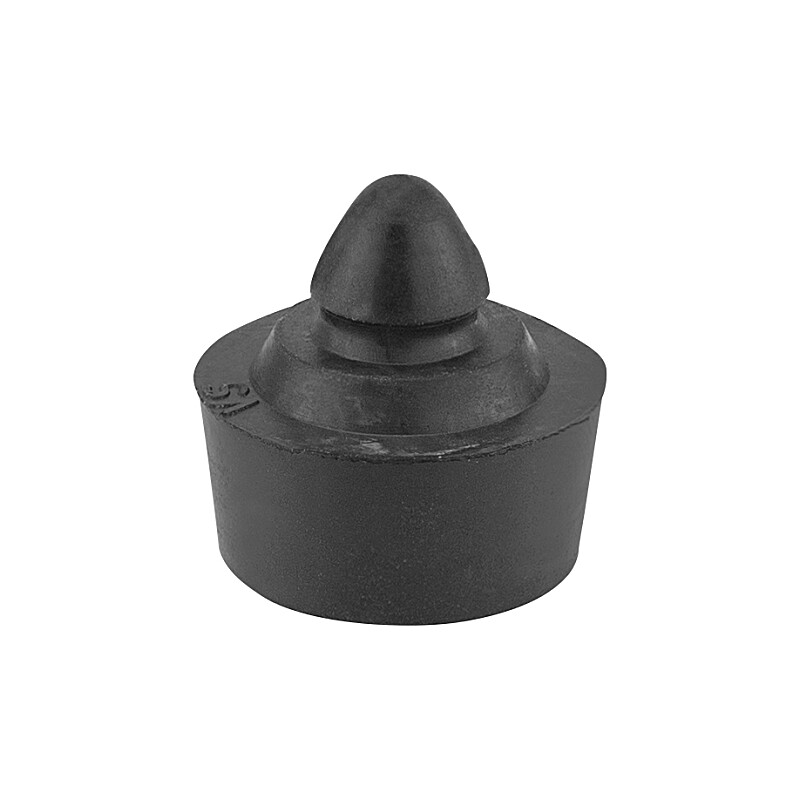

Simson saddle stop, MZ ETZ - small - MZA

Rubber saddle stop from distributor MZA, Germany

Designed for motorcycles:

• Simson S51 - Enduro, Electronics (for motorcycle - 4 pcs)
• Simson SR50 - Scooter (for motorcycle - 4pcs)
• MZ ETZ - 125, 150, 250, 251 (for motorcycle - 2 pcs)

Parameters:

• Total length of the stop: 22 mm
• length of the protruding part (above the sheet metal): 14 mm
• the protruding part is slightly conical - upper diameter: 18.5 mm
• the protruding part is slightly conical - lower diameter: 19.5 mm
• the protruding part still has a rebound (it sits on the sheet metal): 15 mm / height: 3 mm (counted in the length of the protruding part above the sheet metal)
• groove for sheet metal: 2 mm
• shank diameter (into the hole in the sheet metal): 7mm
• material: rubber

MZA Meyer-Zweiradtechnik GmbH, Zeppelinstr. 1, 98617 Meiningen, Germany
